£14.19
Loading...

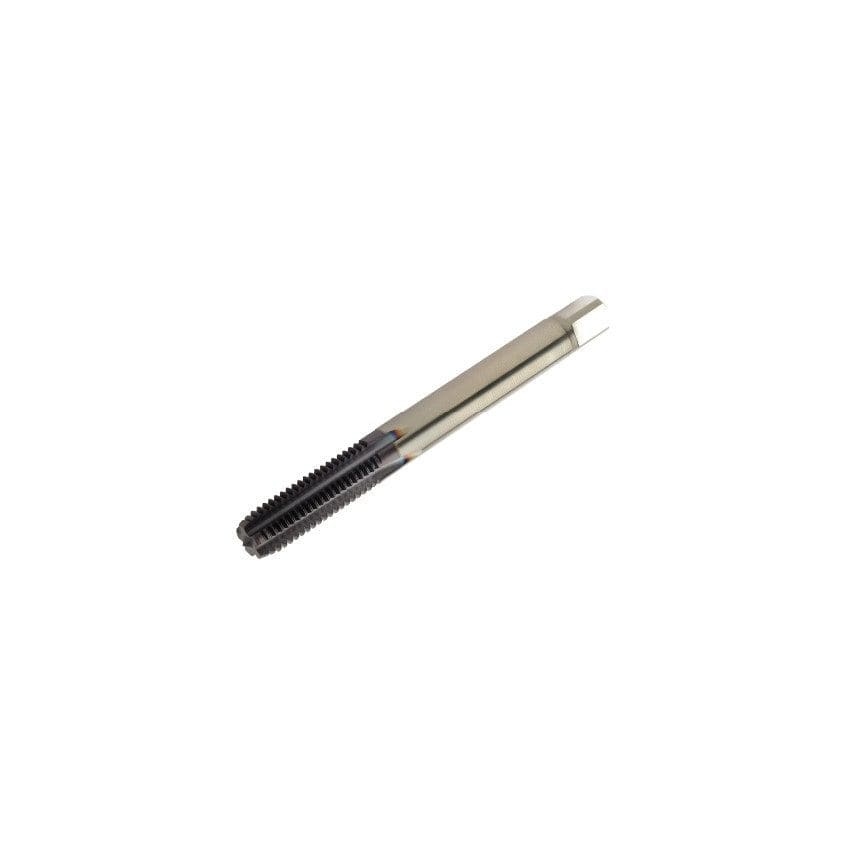

Product Range: CoroTap 100Tool Type: TappingCoroTap 100 is a range of straight flute taps that are optimized for short chipping ISO K, ISO N and ISO H materials. Suitable for through and blind holes.Features & Benefits- Straight flute taps for through and blind holes in short-chipping materials- Variety of thread forms and standards- External and internal coolant delivery
| Thread Diameter Size | M 12 |
| Coating Process Type | PVD |
| Coolant Exit Style | 0 |
| Thread Size | 12.0mm |
| Coolant Entry Style | Without Coolant |
| Usable Length | 32mm |
| Weight | 0.16kg |
| Thread Pitch | 1.75mm |
| Basic Standard Group | C-DIN 371 |
| CoroPak | 11.2 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| MFR Part No. | 26183225 |
| Functional Length | 110mm |
| Through Hole Function Property | Yes |
| Blind Hole Function Property | Yes |
| Finish | TiAlN |
| Unit Measured | Metric |
| Finish/Coating | PVD |
| Thread Tolerance Class | 6HX |
| Coating Type | TiAlN |
| Connection Diameter | 32mm |
