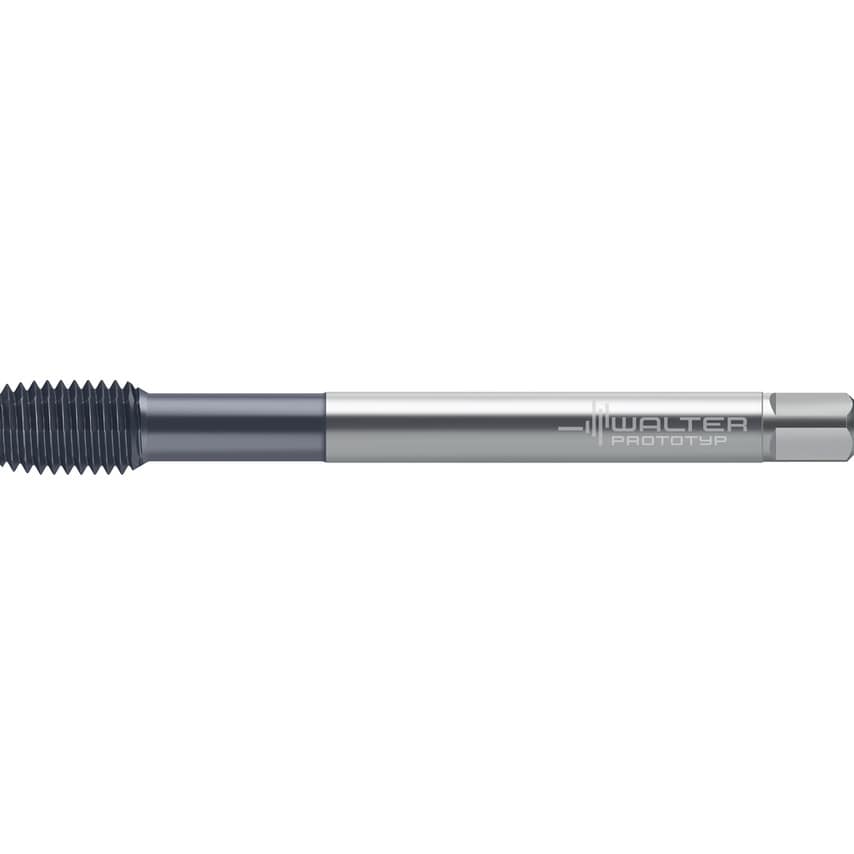

HSS-E-PM machine thread formers Supreme C = 2-3xTP (semi-bottom chamfer) 3xD MF/6HX DIN 2174 Suitable for blind hole WW60EL Suitable for through hole MF 8x1
| Usable Length | 67mm |
| Cutting Edge Length | 12mm |
| Driving Square Length | 8mm |
| Thread Size | MF 8x1 |
| Connection Diameter | 6mm |
| MFR Part No. | 7958130 |
| Functional Length | 90mm |
| Tool Designation | TC430-M8X1-L1-WW60EL |
| Thread Pitch | 1mm |
| Clamping Width | 4.9mm |
| Number of Grooves | 6 |
