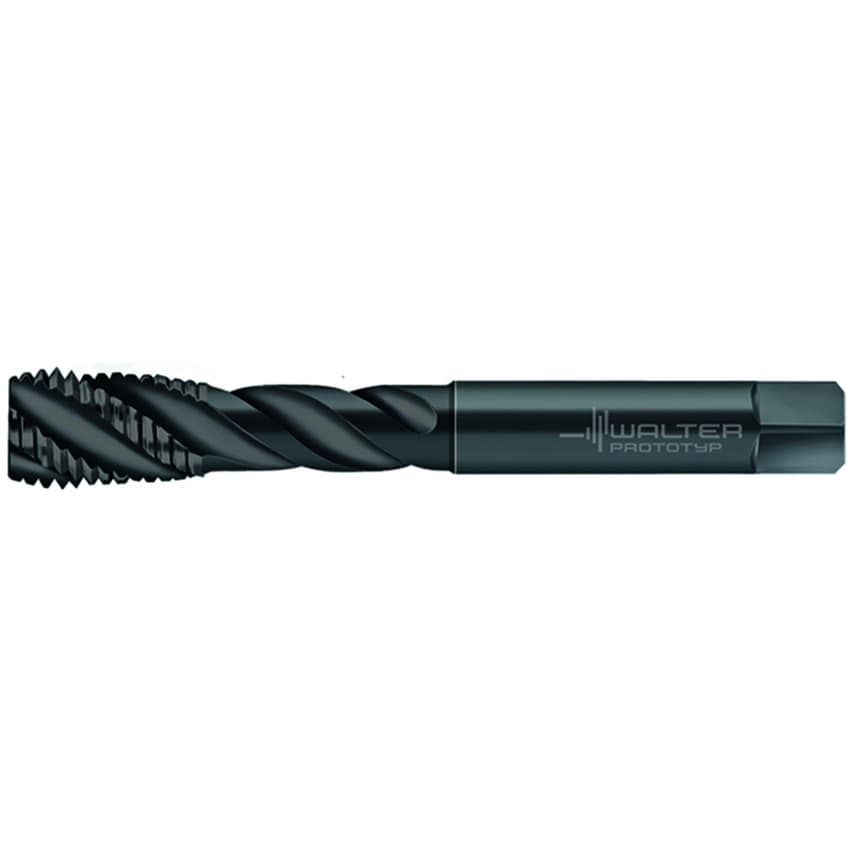

HSS-E (-PM) machine taps TC142 Supreme C = 2-3xTP (semi-bottom chamfer) 3xD UNF/2BX DIN/ANSI right hand flute 50 Suitable for blind hole WY80FC UNF 7/16-20 P=20
| MFR Part No. | 7569279 |
| Thread Size | UNF 7/16-20 |
| Cutting Edge Length | 0.59in |
| Tool Designation | TC142.UNF7/16-L0-WY80FC |
| Number of Grooves | 3 |
| Connection Diameter | 0.32in |
| Driving Square Length | 0.41in |
| Clamping Width | 0.24in |
| Usable Length | 2.86in |
| Functional Length | 3.94in |
