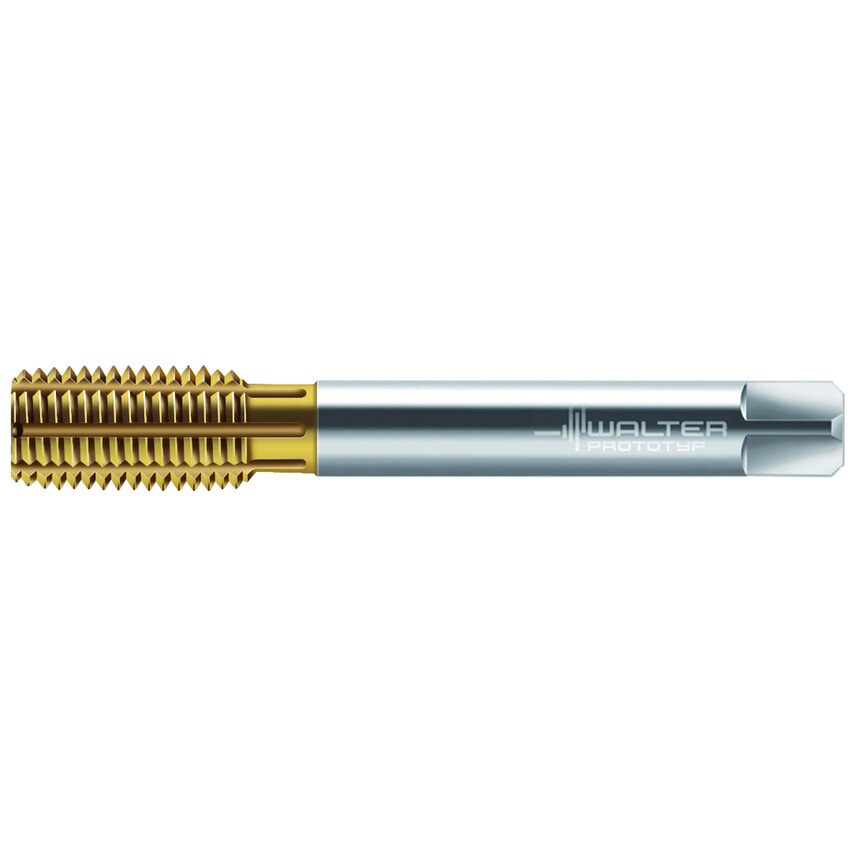

HSS-E-PM machine thread formers TC420 Supreme C = 2-3xTP (semi-bottom chamfer) 3,5xD UNF/2BX DIN/ANSI Suitable for blind hole WW60AD Suitable for through hole UNF 5/8-18 P=18
| Thread Size | UNF 5/8-18 |
| Connection Diameter | 0.48in |
| Usable Length | 2.19in |
| Cutting Edge Length | 0.59in |
| Driving Square Length | 0.56in |
| Tool Designation | TC420.UNF5/8-L2-WW60AD |
| Number of Grooves | 6 |
| Clamping Width | 0.36in |
| Functional Length | 3.94in |
| MFR Part No. | 7732962 |
