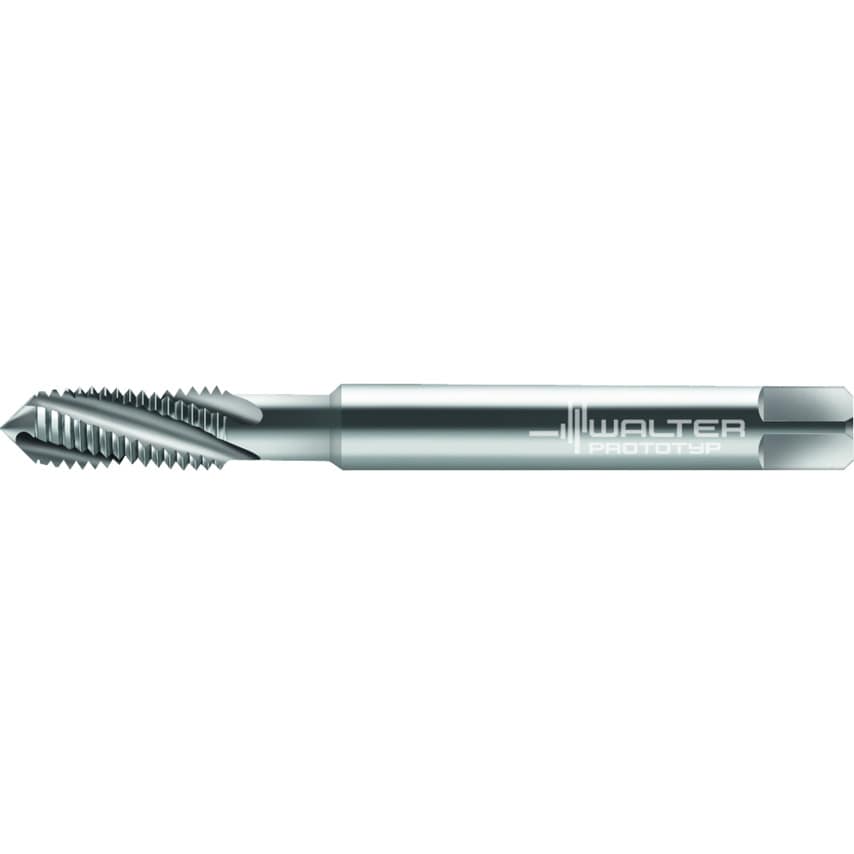

HSS-E PM machine taps Paradur Ni C = 2-3xTP (semi-bottom chamfer) 1,5xD UNC/2B ~DIN 2184-1 right hand flute 25 Suitable for blind hole UNC #8-32 P=32
| Number of Grooves | 3 |
| Tool Designation | 224102-UNC8 |
| Functional Length | 63mm |
| Connection Diameter | 4.5mm |
| Usable Length | 13mm |
| Clamping Width | 3.4mm |
| Thread Size | UNC #8-32 |
| Driving Square Length | 6mm |
| MFR Part No. | 5078184 |
| Cutting Edge Length | 13mm |
