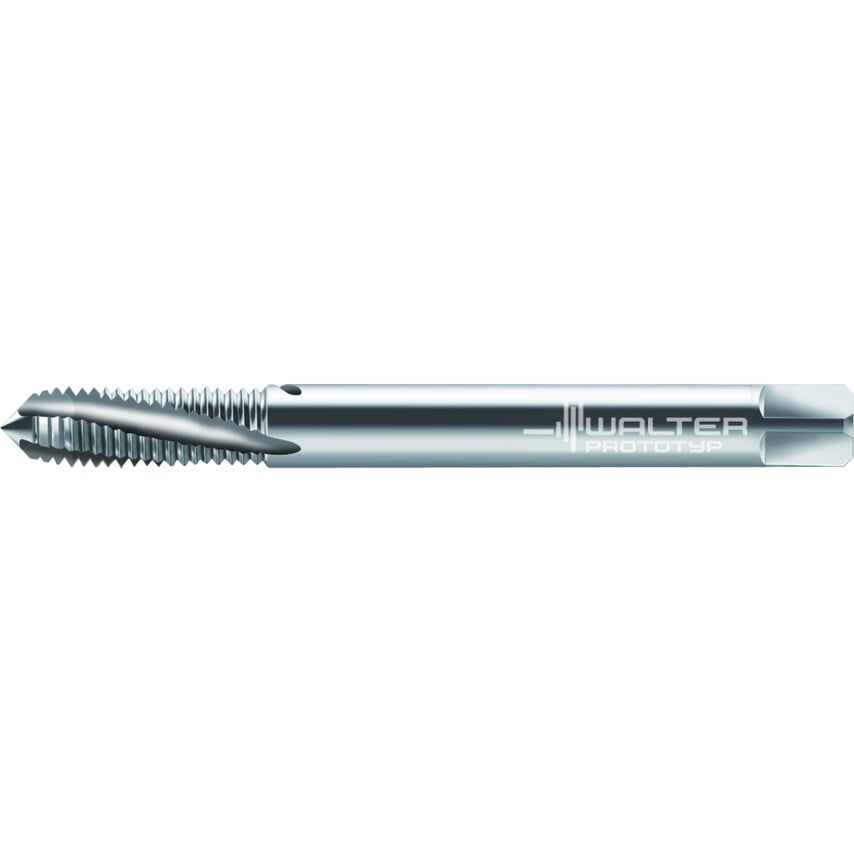

HSS-E PM machine taps Paradur Ni 10 C = 2-3xTP (semi-bottom chamfer) 1,5xD M/6HX ~DIN 371 right hand flute 10 Suitable for blind hole M 12 P=0.0689in
| Tool Designation | 204101-M12 |
| Connection Diameter | 12mm |
| Cutting Edge Length | 30.5mm |
| Thread Size | M 12 |
| Functional Length | 110mm |
| Usable Length | 68mm |
| Thread Pitch | 1.75mm |
| Driving Square Length | 12mm |
| MFR Part No. | 5076477 |
| Number of Grooves | 4 |
| Clamping Width | 9mm |
