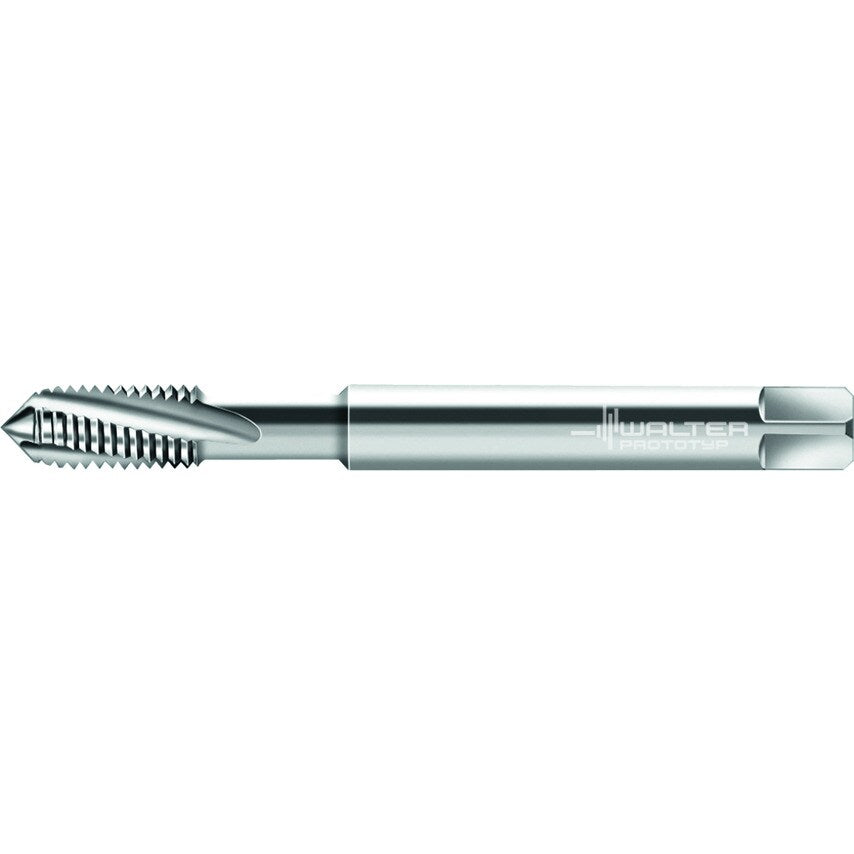

HSS-E PM machine taps Paradur Ti C = 2-3xTP (semi-bottom chamfer) 2xD UNC/3B ~DIN 2184-1 right hand flute 15 Suitable for blind hole UNC #10-24 P=24
| MFR Part No. | 5078210 |
| Functional Length | 70mm |
| Clamping Width | 4.9mm |
| Connection Diameter | 6mm |
| Tool Designation | 224164-UNC10 |
| Cutting Edge Length | 16mm |
| Number of Grooves | 3 |
| Thread Size | UNC #10-24 |
| Usable Length | 16mm |
| Driving Square Length | 8mm |
