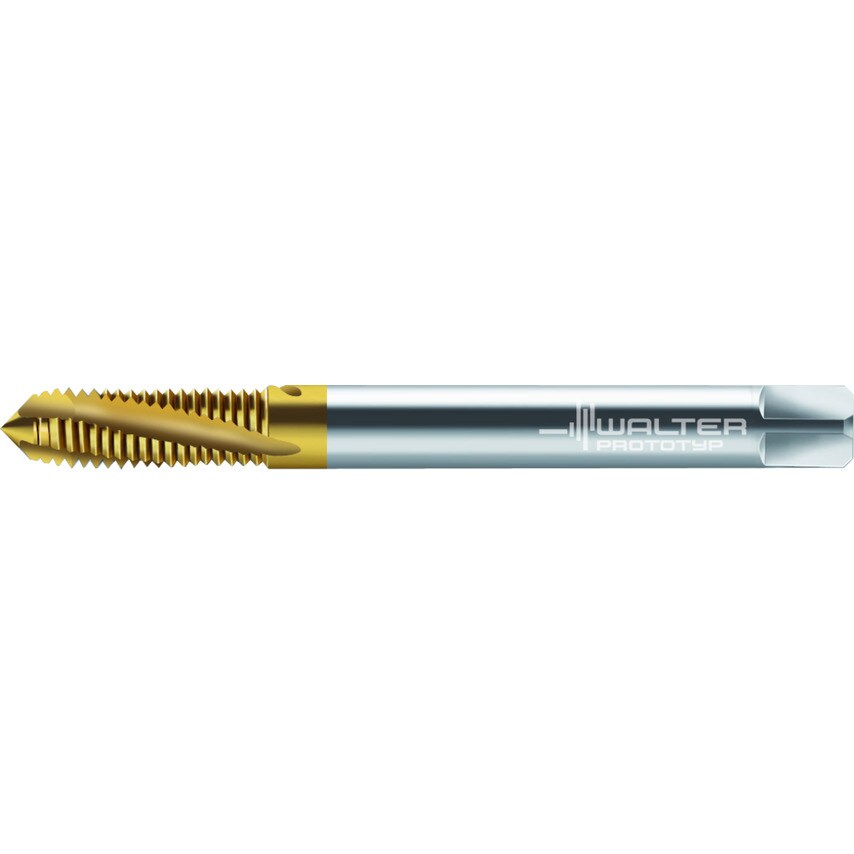

HSS-E PM machine taps Paradur Ni 10 C = 2-3xTP (semi-bottom chamfer) 1,5xD M/6HX ~DIN 371 right hand flute 10 Suitable for blind hole TIN M 8 P=0.0492in
| Thread Size | M 8 |
| Number of Grooves | 3 |
| Usable Length | 66mm |
| MFR Part No. | 5076483 |
| Thread Pitch | 1.25mm |
| Cutting Edge Length | 20.5mm |
| Tool Designation | 2041015-M8 |
| Connection Diameter | 8mm |
| Clamping Width | 6.2mm |
| Functional Length | 90mm |
| Driving Square Length | 9mm |
