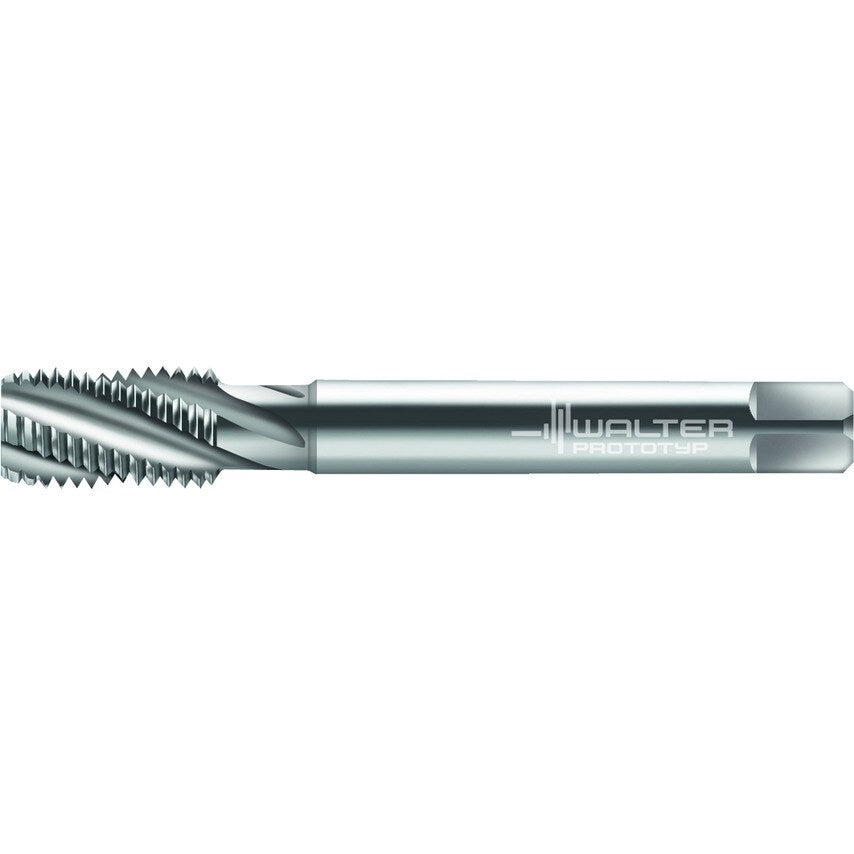

HSS-E PM machine taps Paradur Ni C = 2-3xTP (semi-bottom chamfer) 1,5xD UNC/2B DIN 2184-1 right hand flute 25 Suitable for blind hole UNC 1/2-13 P=13
| Driving Square Length | 10mm |
| Functional Length | 110mm |
| Tool Designation | 224602-UNC1/2 |
| Clamping Width | 7mm |
| Usable Length | 83mm |
| Thread Size | UNC 1/2-13 |
| Cutting Edge Length | 23mm |
| Connection Diameter | 9mm |
| Number of Grooves | 4 |
| MFR Part No. | 5078227 |
