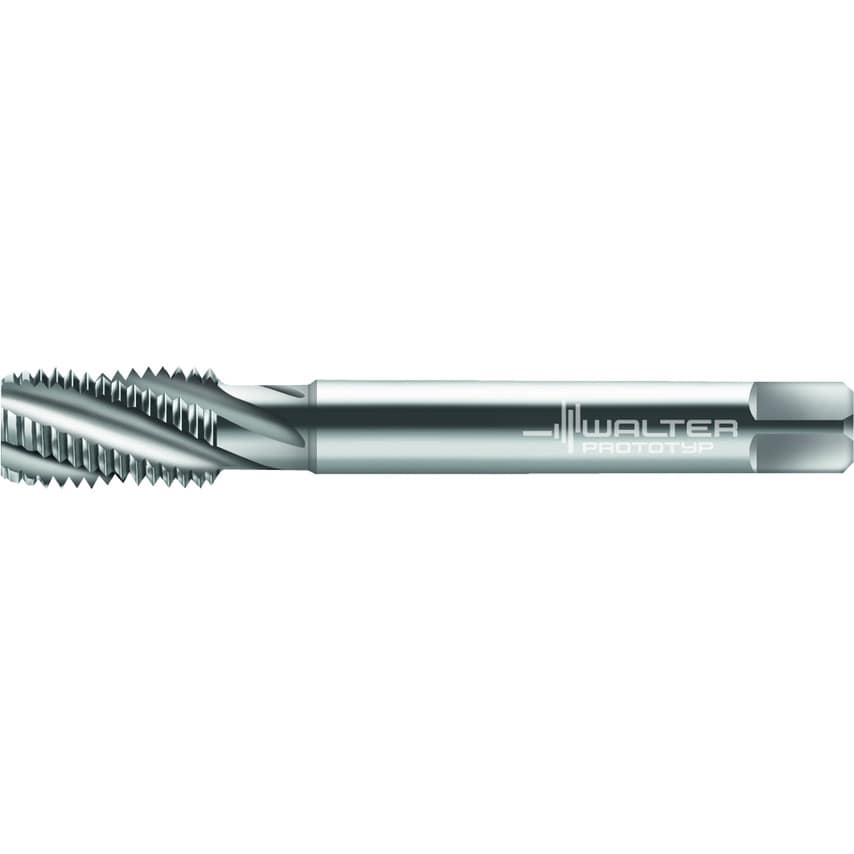

HSS-E PM machine taps Paradur Ni C = 2-3xTP (semi-bottom chamfer) 1,5xD UNF/3B DIN 2184-1 right hand flute 25 Suitable for blind hole UNF 7/16-20 P=20
| Tool Designation | 234604-UNF7/16 |
| Cutting Edge Length | 20mm |
| Connection Diameter | 8mm |
| MFR Part No. | 5078640 |
| Number of Grooves | 4 |
| Thread Size | UNF 7/16-20 |
| Clamping Width | 6.2mm |
| Driving Square Length | 9mm |
| Functional Length | 100mm |
| Usable Length | 76mm |
