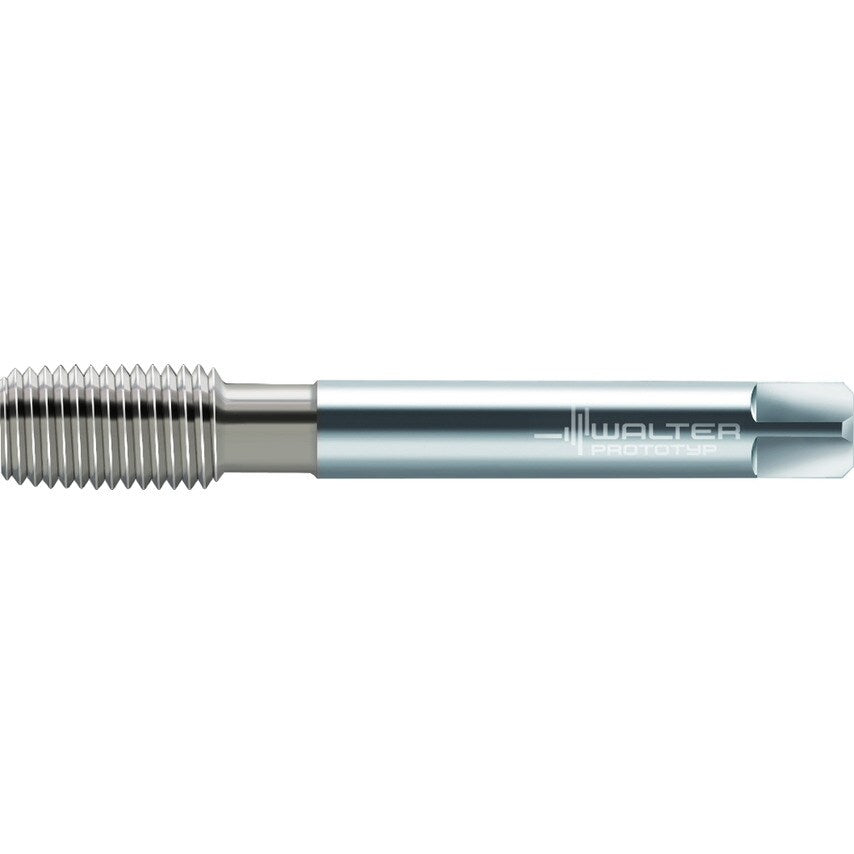

HSS-E machine thread formers Protodyn Eco LM C = 2-3xTP (semi-bottom chamfer) 2xD M/6HX DIN 2174 Suitable for blind hole CRN Suitable for through hole M 12 P=0.0689in
| Driving Square Length | 10mm |
| Tool Designation | E2066604-M12 |
| MFR Part No. | 5200973 |
| Clamping Width | 7mm |
| Thread Size | M 12 |
| Functional Length | 110mm |
| Usable Length | 83mm |
| Number of Grooves | 4 |
| Connection Diameter | 9mm |
| Thread Pitch | 1.75mm |
| Cutting Edge Length | 23mm |
