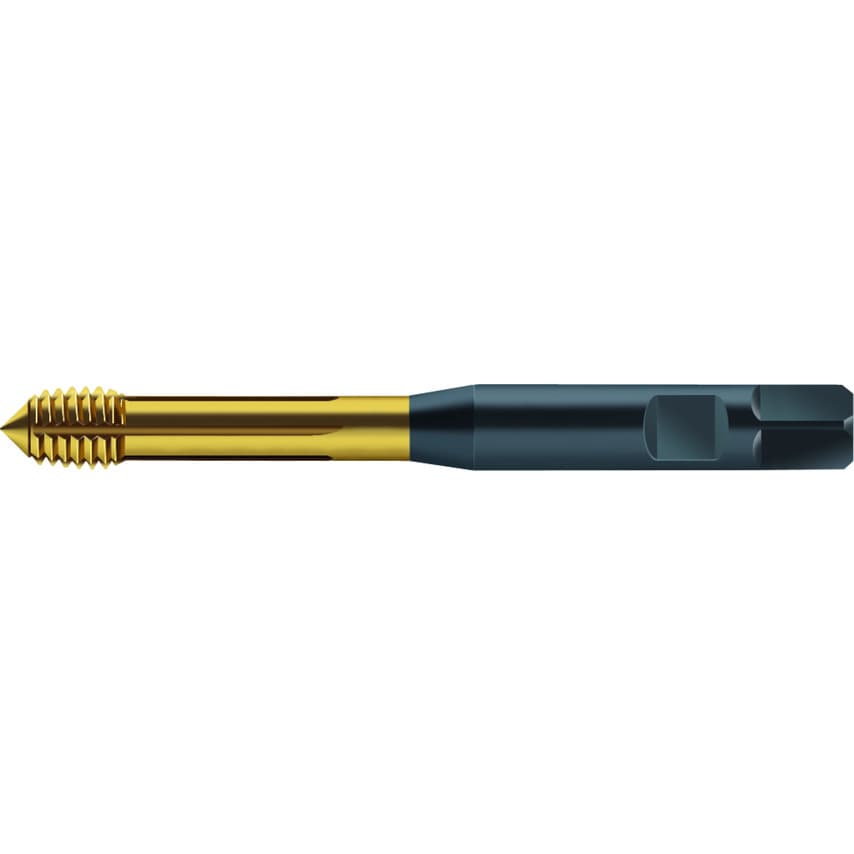

HSS-E machine thread formers Protodyn S Synch. C = 2-3xTP (semi-bottom chamfer) 3,5xD MF/6HX ~DIN 2174 Suitable for blind hole TIN Suitable for through hole MF 8x1 P=0.0394in
| Usable Length | 35mm |
| MFR Part No. | 5101790 |
| Connection Diameter | 8mm |
| Thread Pitch | 1mm |
| Cutting Edge Length | 6mm |
| Thread Size | MF 8x1 |
| Driving Square Length | 9mm |
| Number of Grooves | 5 |
| Functional Length | 90mm |
| Clamping Width | 6.2mm |
| Tool Designation | S2166305-M8X1 |
