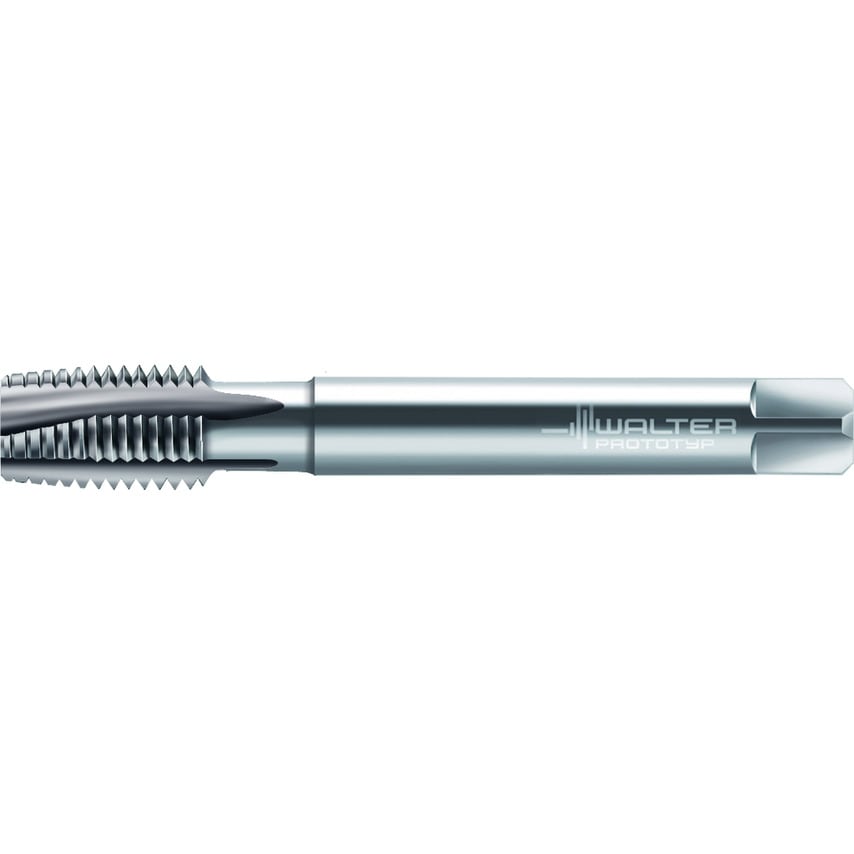

HSS-E PM machine taps Prototex TiNi B = 3.5-5xTP (plug chamfer) 2xD UNF/3B ANSI B94.9 Suitable for through hole UNF 7/16-20 P=20
| Clamping Width | 0.24in |
| Tool Designation | A2325760-UNF7/16 |
| Thread Size | UNF 7/16-20 |
| Number of Grooves | 4 |
| Cutting Edge Length | 0.87in |
| Usable Length | 2.08in |
| MFR Part No. | 5934216 |
| Overall Length | 3.16in |
| Driving Square Length | 0.41in |
| Shank Diameter | 0.32in |
