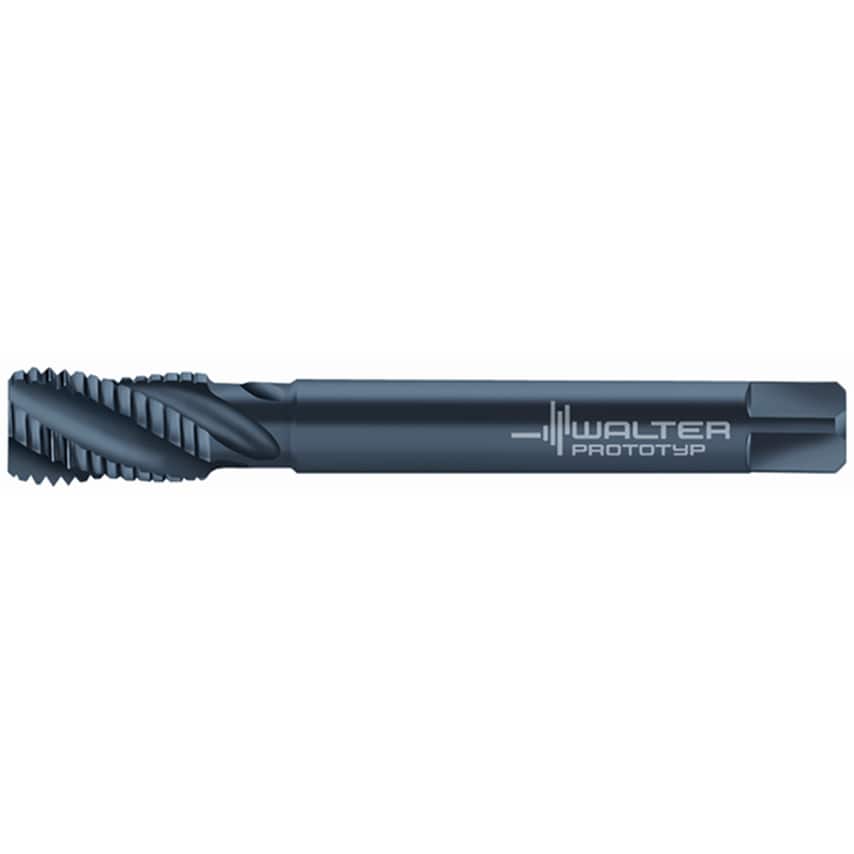

HSS-E machine taps Paradur Xpert M C = 2-3xTP (semi-bottom chamfer) 2,5xD UNC/2B DIN 2184-1 right hand flute 40 Suitable for blind hole VAP UNC 1.1/4-7 P=7
| Usable Length | 115mm |
| Connection Diameter | 22mm |
| Functional Length | 180mm |
| MFR Part No. | 6149959 |
| Thread Size | UNC 1.1/4-7 |
| Cutting Edge Length | 35mm |
| Number of Grooves | 5 |
| Thread Standard | UNC |
| Driving Square Length | 21mm |
| Tool Designation | M22563-UNC1.1/4 |
| Clamping Width | 18mm |
| Material | HSSE |
| Finish/Coating | VAP |
