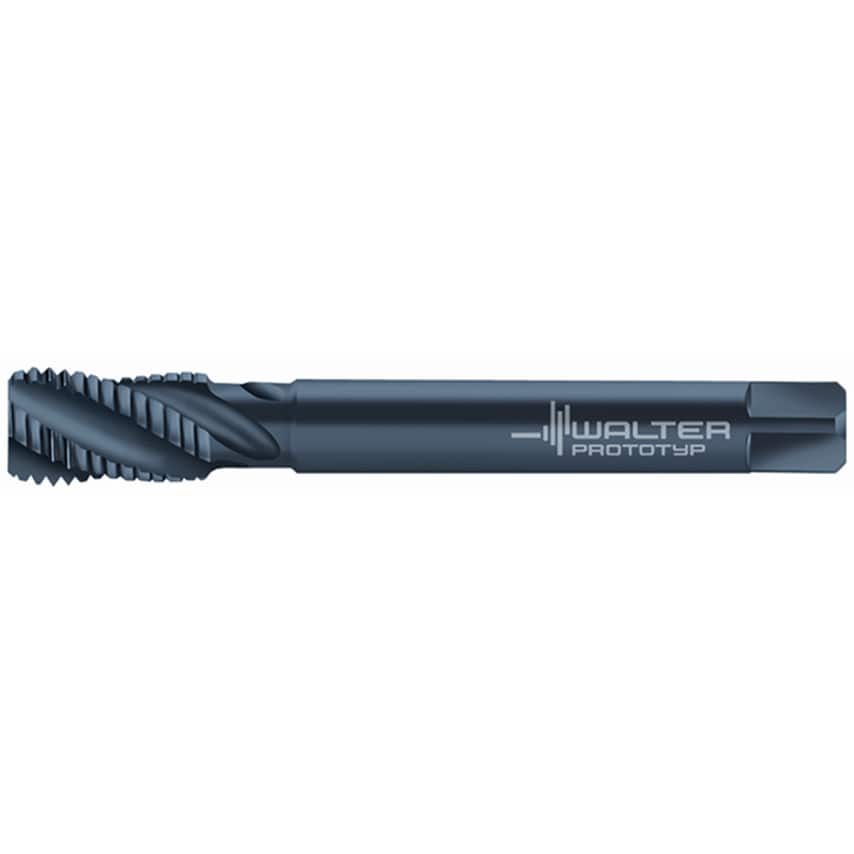

HSS-E machine taps Paradur Xpert M C = 2-3xTP (semi-bottom chamfer) 2,5xD UNC/2B DIN 2184-1 right hand flute 40 Suitable for blind hole VAP UNC 3/4-10 P=10
| Number of Grooves | 4 |
| Dimensions Standard | DIN 2184-1 |
| Connection Diameter | 14mm |
| Driving Square Length | 14mm |
| Thread Size | 3/4in |
| Clamping Width | 11mm |
| Cutting Edge Length | 25mm |
| Usable Length | 81mm |
| ISO Designation | M22563-UNC3/4 |
| Finish/Coating | VAP |
| Thread Standard | UNC |
| Functional Length | 125mm |
| Tap Type | Spiral Flute |
| ISO Category | M | P |
| Material | HSSE |
| Tool Designation | M22563-UNC3/4 |
| Series | Paradur\u00ae X\u00b7pert M |
| Teeth per Inch | 10 |
| MFR Part No. | 6149951 |
