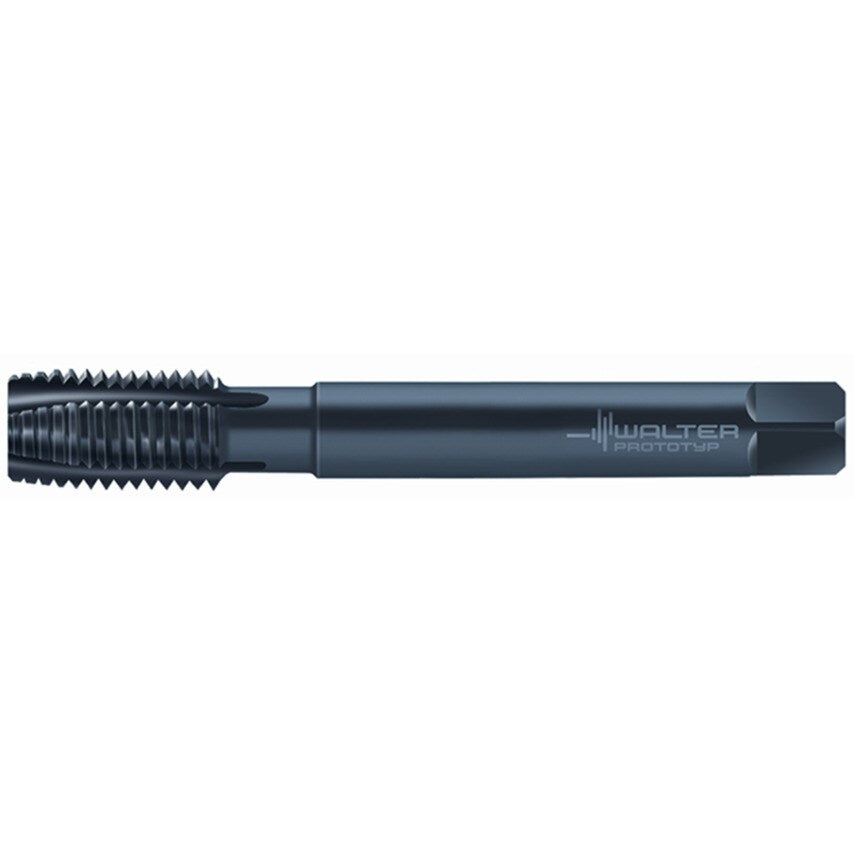

HSS-E machine taps Prototex Xpert M B = 3.5-5xTP (plug chamfer) 3xD UNF/2B DIN 2184-1 Suitable for through hole VAP UNF 1"-12 P=12
| Thread Size | UNF 1in-12 |
| Clamping Width | 14.5mm |
| Shank Diameter | 18mm |
| MFR Part No. | 6149987 |
| Cutting Edge Length | 26mm |
| Tool Designation | M23263-UNF1 |
| Overall Length | 140mm |
| Driving Square Length | 17mm |
| Usable Length | 93mm |
| Number of Grooves | 4 |
