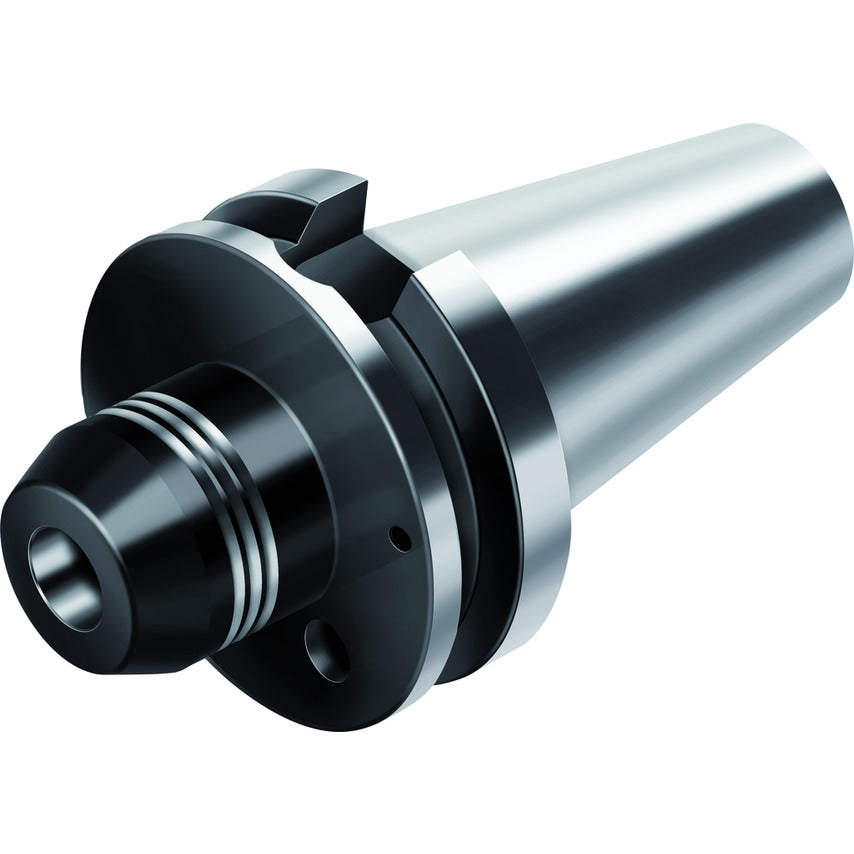

MAS-BT JIS B 6339 hydraulic expansion chuck AK182.BT metric For tools with shank in accordance with DIN 1835 Form A ISO 7388-2 d1=40 d11=12
| Connection Diameter | 12mm |
| Usable Length | 31mm |
| Tool Designation | AK182.BT40.058.12 |
| Body Diameter | 42mm |
| Maximum Projection Length | 58mm |
| Thread Size | M16 |
| Clamping Diameter Depth | 46mm |
| Min. Clamping Diameter Depth | 36mm |
| Connection Size Code | BT40 |
| MFR Part No. | 6381128 |
