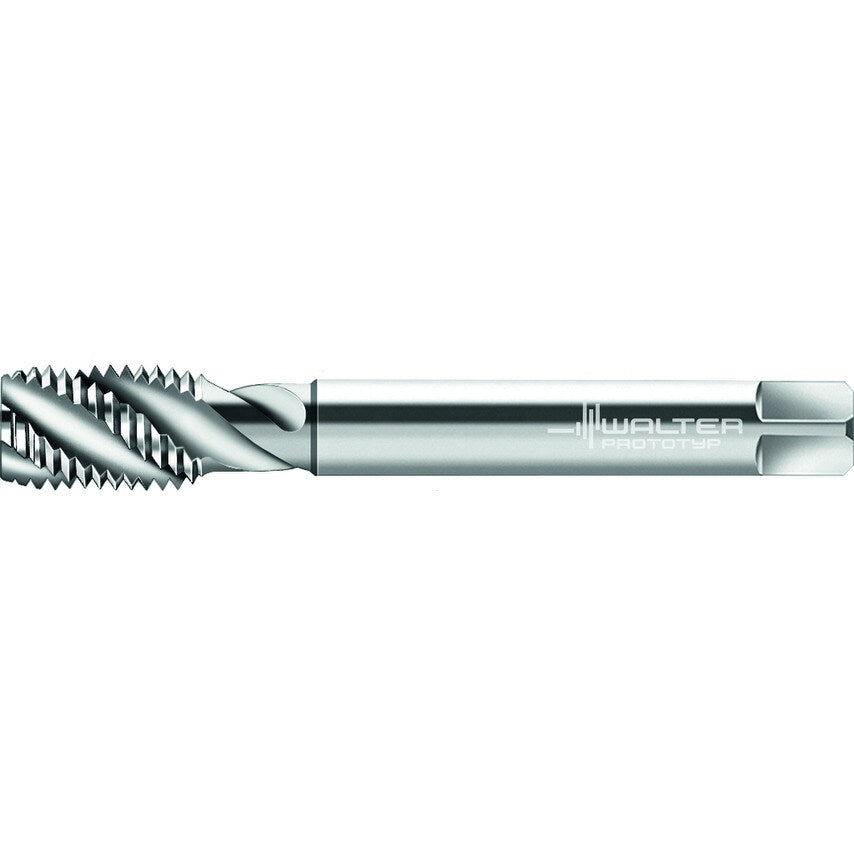

HSS-E machine taps Paradur Xpert P C = 2-3xTP (semi-bottom chamfer) 3xD BSW/MEDIUM DIN 2184-1 right hand flute 45 Suitable for blind hole BSW 7/16-14 P=14
| Functional Length | 100mm |
| Material | HSSE |
| Thread Standard | BSW |
| Clamping Width | 6.2mm |
| Tool Designation | P28569-BSW7/16 |
| Usable Length | 76mm |
| Number of Grooves | 3 |
| Driving Square Length | 9mm |
| MFR Part No. | 6244819 |
| Thread Size | BSW 7/16-14 |
| Threads Per Inch | 14 |
| Connection Diameter | 8mm |
| Cutting Edge Length | 15mm |
