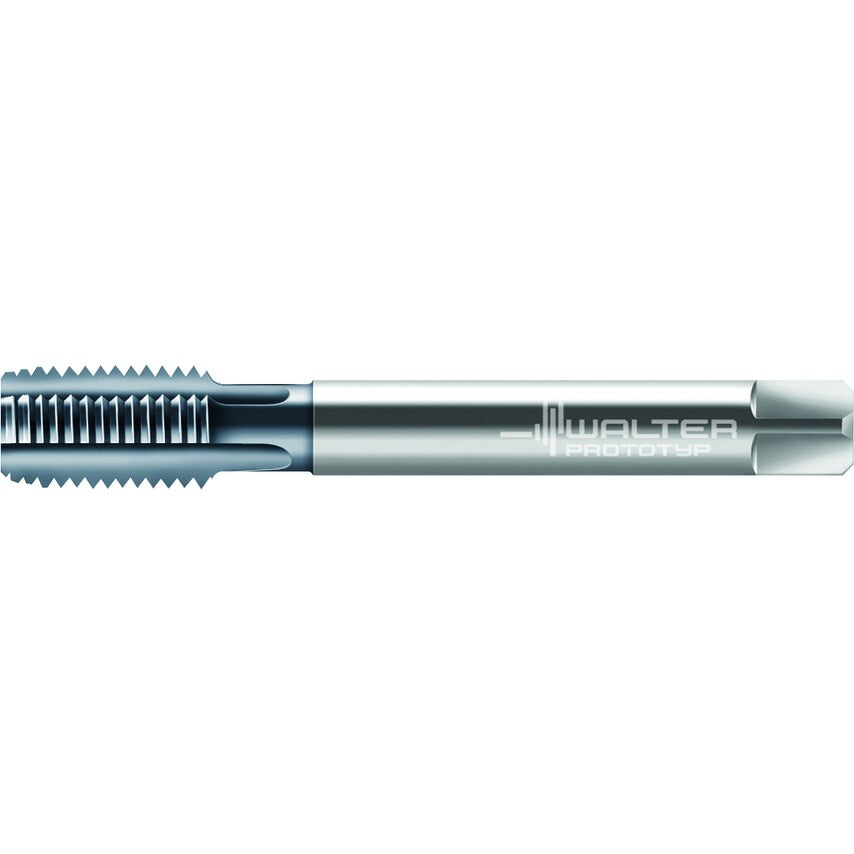

HSS-E PM machine taps Paradur Eco CI C = 2-3xTP (semi-bottom chamfer) 3xD UNF/2B DIN/ANSI neutral (straight) flute 0 Suitable for blind hole TICN UNF 1"-12 P=12
| Functional Length | 5.51in |
| MFR Part No. | 7569332 |
| Tool Designation | AE2336416-UNF1 |
| Usable Length | 2.97in |
| Driving Square Length | 0.81in |
| Thread Pitch | 12 |
| Thread Size | UNF 1in-12 |
| Cutting Edge Length | 1.02in |
| Connection Diameter | 0.8in |
| Clamping Width | 0.6in |
| Number of Grooves | 5 |
