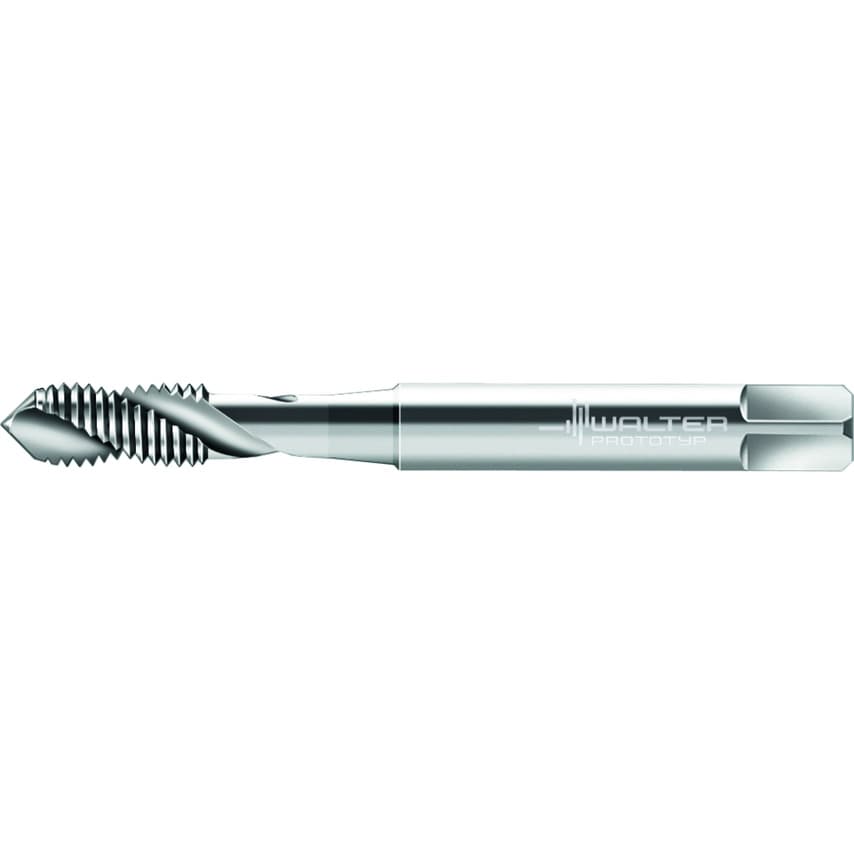

HSS-E machine taps Paradur Xpert N C = 2-3xTP (semi-bottom chamfer) 3xD M/6H DIN/ANSI right hand flute 35 Suitable for blind hole Suitable for through hole M 5 P=0.0315in
| MFR Part No. | 7569507 |
| Number of Grooves | 2 |
| Connection Diameter | 0.19in |
| Thread Size | M 5 |
| Functional Length | 2.76in |
| Cutting Edge Length | 0.32in |
| Usable Length | 0.98in |
| Tool Designation | AN20516-M5 |
| Clamping Width | 0.15in |
| Driving Square Length | 0.25in |
