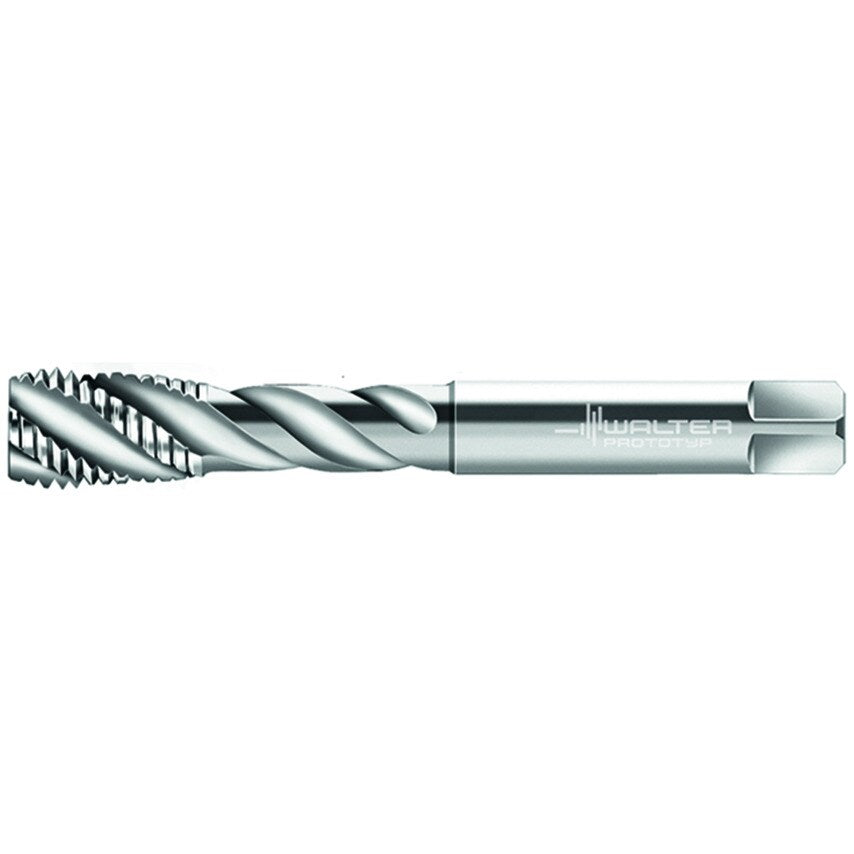

HSS-E machine taps Paradur Xpert P C = 2-3xTP (semi-bottom chamfer) 3xD MF/6H DIN 374 right hand flute 45 Suitable for blind hole MF 14x1.5 P=0.0591in
| Pitch | 1.5mm |
| Thread Pitch | 1.5mm |
| Tool Designation | P21569-M14X1.5 |
| Finish/Coating | Uncoated |
| Thread Size | M14 |
| Usable Length | 71mm |
| Functional Length | 100mm |
| MFR Part No. | 6244639 |
| Clamping Width | 9mm |
| Cutting Edge Length | 15mm |
| Dimensions Standard | DIN 374 |
| Tap Type | Spiral Flute |
| Connection Diameter | 11mm |
| Driving Square Length | 12mm |
| Series | Paradur\u00ae X\u00b7pert P |
| ISO Designation | P21569-M14X1.5 |
| Material | HSSE |
| ISO Category | O |
| Number of Grooves | 4 |
| Thread Standard | Metric |
