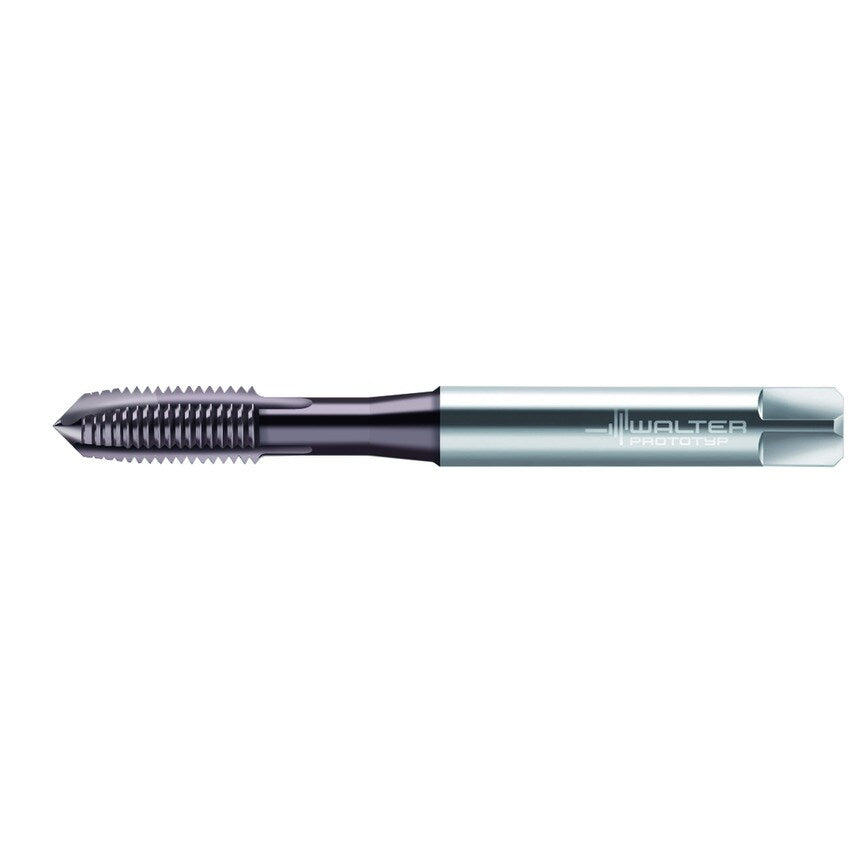

HSS-E PM machine taps Prototex Eco Plus B = 3.5-5xTP (plug chamfer) 3,5xD M/6HX DIN 371 Suitable for through hole THL M 10 P=0.0591in
| Overall Length | 100mm |
| MFR Part No. | 6432496 |
| Thread Pitch | 1.5mm |
| Driving Square Length | 11mm |
| Shank Diameter | 10mm |
| Thread Size | M 10 |
| Cutting Edge Length | 20mm |
| Clamping Width | 8mm |
| Connection Diameter | 10mm |
| Usable Length | 39mm |
| Number of Grooves | 3 |
| Tool Designation | EP2021302-M10 |
