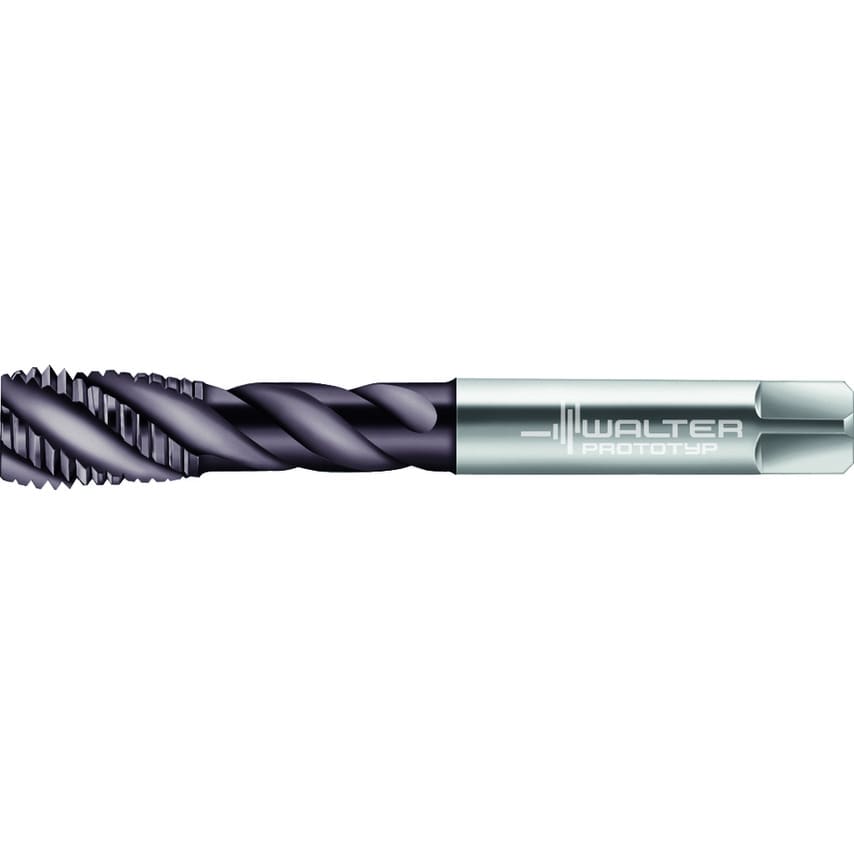

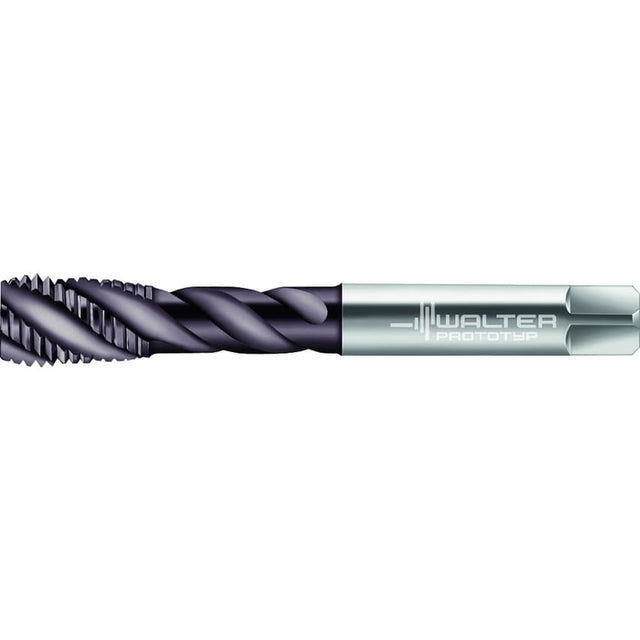

HSS-E PM machine taps Paradur Eco Plus C = 2-3xTP (semi-bottom chamfer) 3xD UNC/2B DIN/ANSI right hand flute 45 Suitable for blind hole THL UNC 5/8-11 P=11
| Tool Designation | AEP2256302-UNC5/8 |
| Clamping Width | 0.36in |
| Usable Length | 2.59in |
| Connection Diameter | 0.48in |
| MFR Part No. | 6245713 |
| Driving Square Length | 0.56in |
| Cutting Edge Length | 0.79in |
| Functional Length | 4.33in |
| Thread Size | UNC 5/8-11 |
| Number of Grooves | 4 |
