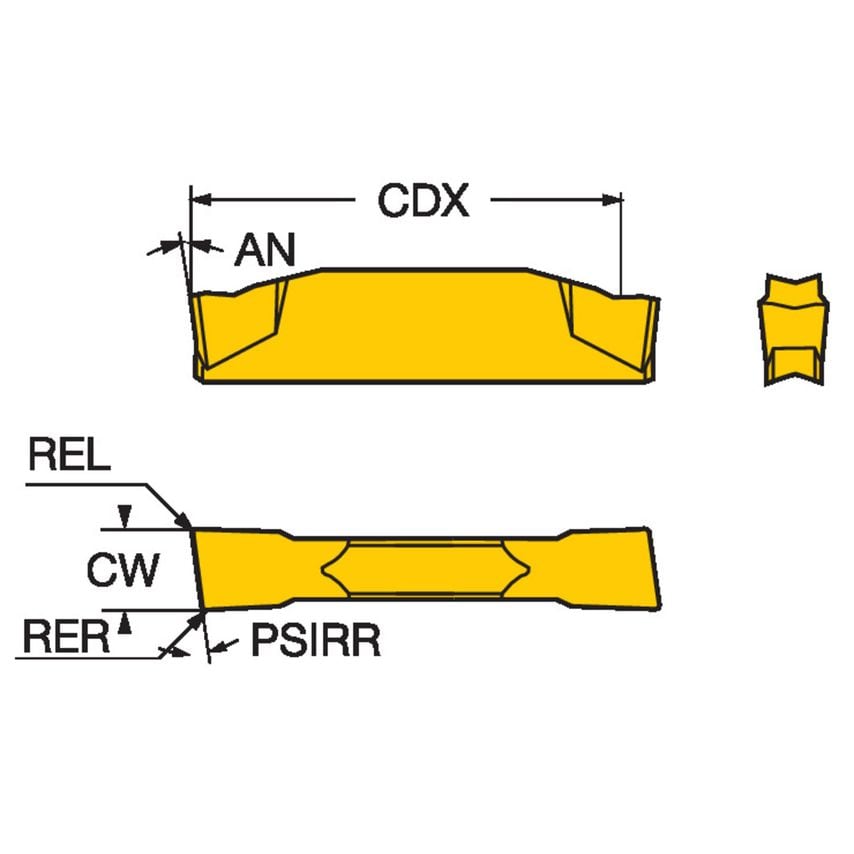

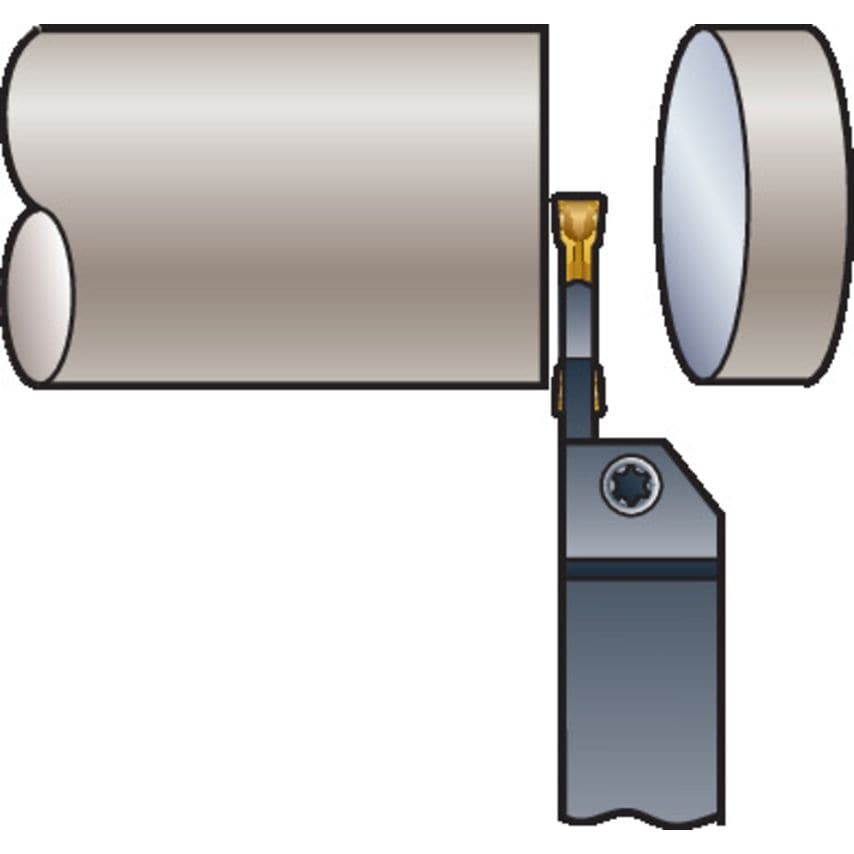

Product Range: CoroCut 1-2Tool Type: Parting and GroovingVersatile parting and grooving. Cost efficiency with two edges. Secure and efficient machining.With more than 700 standard inserts, CoroCut 1-2 covers all parting and grooving applications in most materials, from standardized grooves to parting off and profiling in heat resistant super alloys.Features & Benefits- Versatile parting and grooving- Geometries and grades for all application areas- Precision over and under coolantApplicationParting, external grooving, face grooving, internal grooving, profiling and hard part turningRoughing to finishingIn parting off and external grooving CoroCut 1-2 is a cost-efficient solution to depths where the 2-edged inserts can be used.
| Grade | 1125 |
| Cutting Width | 3mm |
| Unit Measured | Metric |
| Coating Process Type | PVD |
| Cutting Edge Count | 2 |
| Insert Style | Clamp |
| Through Hole Function Property | Yes |
| Maximum Cutting Depth | 19.4mm |
| Insert Size/Shape | CoroCut 1-2 - Size G2 |
| CoroPak | 90 |
| Machine Side Body Angle | 0\u00b0 |
| Hand Preference | Right |
| Insert Mounting Style | Clamp |
| Coating Type | TiAlN |
| Clearance Angle Major | 5\u00b0 |
| Weight | 3.9g |
| MFR Part No. | 5741431 |
| ISO Cutting Tool Material | Coated WC or Cermet |
