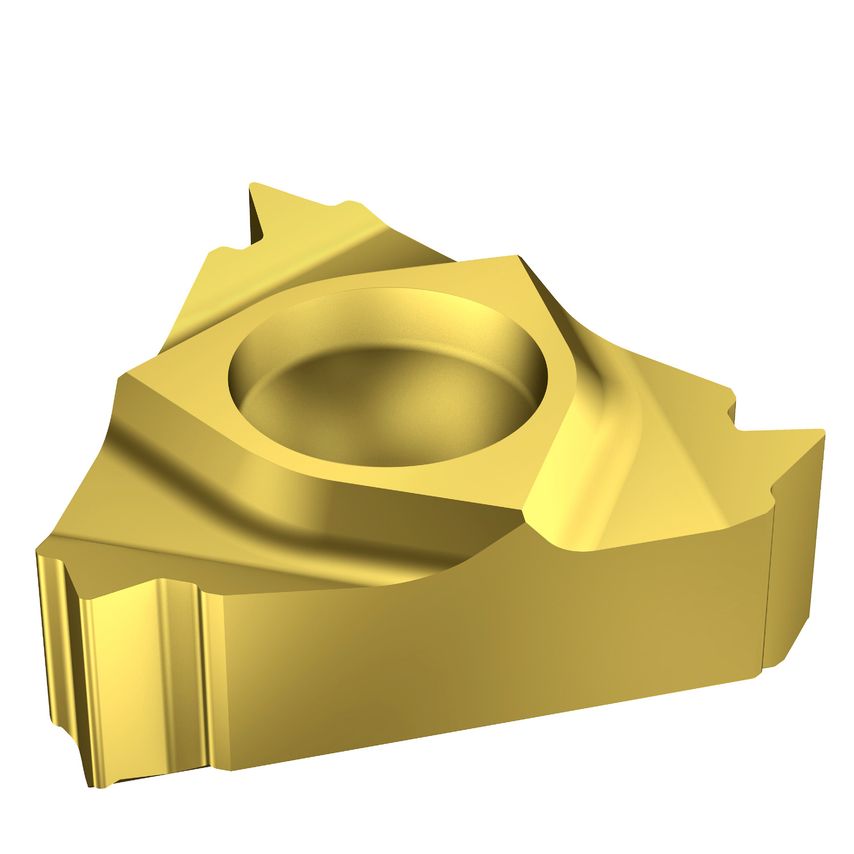

T-Max U-Lock insert for thread turning
| Thread Form Type | UN60 |
| Weight | 2.3g |
| Insert Style | Screw/Clamp |
| Through Hole Function Property | Yes |
| Threads Per Inch | 16 |
| Grade | 1020 |
| Coating Process Type | PVD |
| Coating Type | TiN |
| CoroPak | 91.3 |
| Insert Mounting Style | Screw/Clamp |
| Inscribed Circle | 6.35mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Thread Tolerance Class | 2B |
| Standards Met | ISO 5864-1978 |
| Cutting Edge Count | 3 |
| MFR Part No. | 5742064 |
| Unit Measured | Metric |
| Insert Thickness | 3.175mm |
| Thread Type | Internal |
| Inscribed Circle Diameter | 6.35mm |
| Fixing Hole Diameter | 2.8mm |
| Hand Preference | Right |
