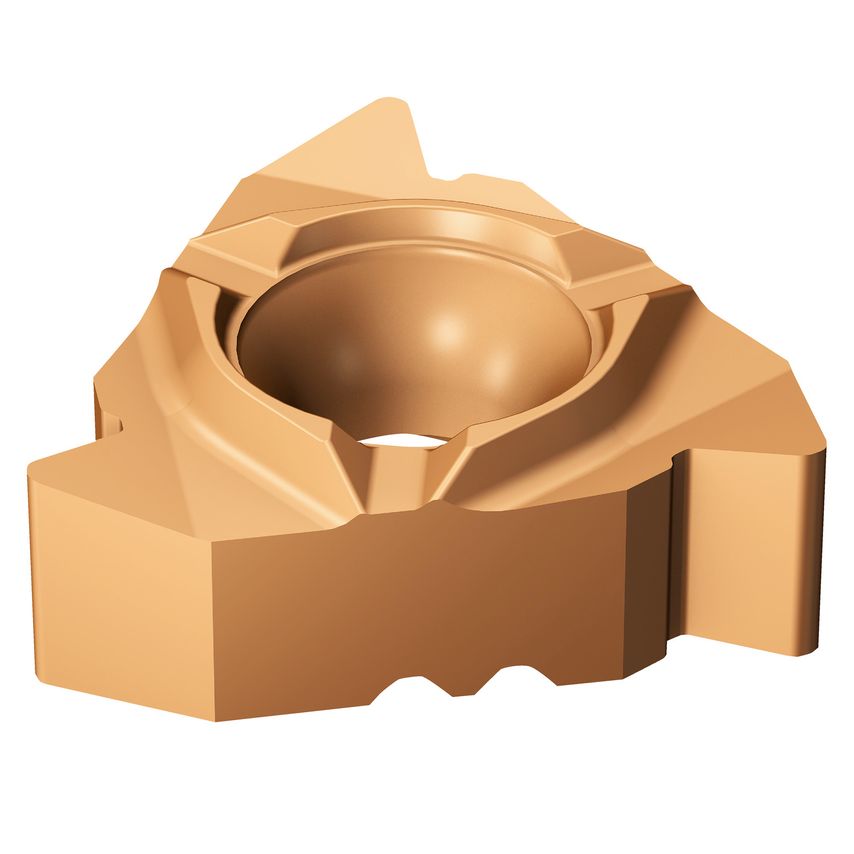

Product Range: CoroThread 266Highly rigid external and internal thread turningFeatures & Benefits- First choice for thread turning, iLock interface- Wide assortment of tools and thread profile inserts- Precision over and under coolant- Long tool life reduces costs- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.- Optimized geometries allow for reliable, predictable tool life in both through and blind hole applications.
| Insert Style | Screw/Clamp |
| Insert Thickness | 3.96875mm |
| Coating Process Type | PVD |
| Coating Type | TiAlN |
| Hand Preference | Right |

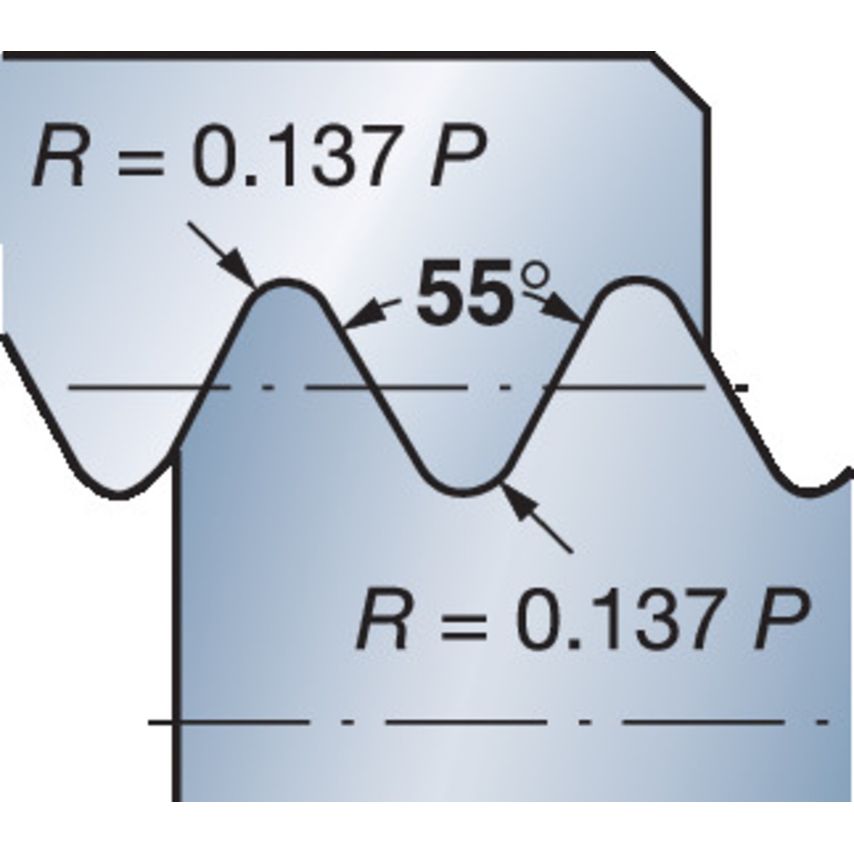

| Thread Form Type | WH55 |
| Through Hole Function Property | Yes |
| Grade | 1125 |
| Threads Per Inch | 16 |
| Inscribed Circle | 9.525mm |
| CoroPak | 10.2 |
| Thread Type | External |
| Insert Mounting Style | Screw/Clamp |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Fixing Hole Diameter | 4.4mm |
| Thread Tolerance Class | CLASSA |
| Unit Measured | Metric |
| Inscribed Circle Diameter | 9.53mm |
| MFR Part No. | 5781955 |
| Cutting Edge Count | 3 |
