Product Range: CoroThread 266Highly rigid external and internal thread turningFeatures & Benefits- First choice for thread turning, iLock interface- Wide assortment of tools and thread profile inserts- Precision over and under coolant- Long tool life reduces costs- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.- Optimized geometries allow for reliable, predictable tool life in both through and blind hole applications.
| Thread Pitch | 5.5mm |
| Inscribed Circle | 12.7mm |
| CoroPak | 8.2 |
| Thread Tolerance Class | IT 6 |
| Grade | 1125 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Standards Met | ISO 965-1998 |
| Insert Thickness | 5.5626mm |
| Through Hole Function Property | Yes |

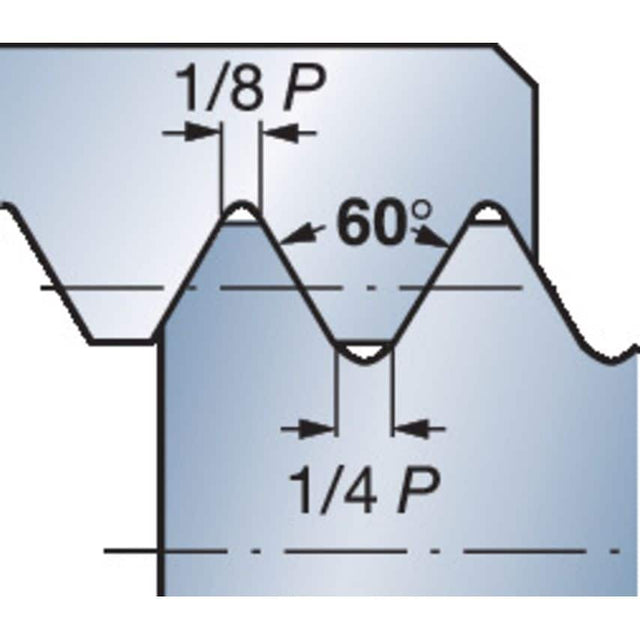

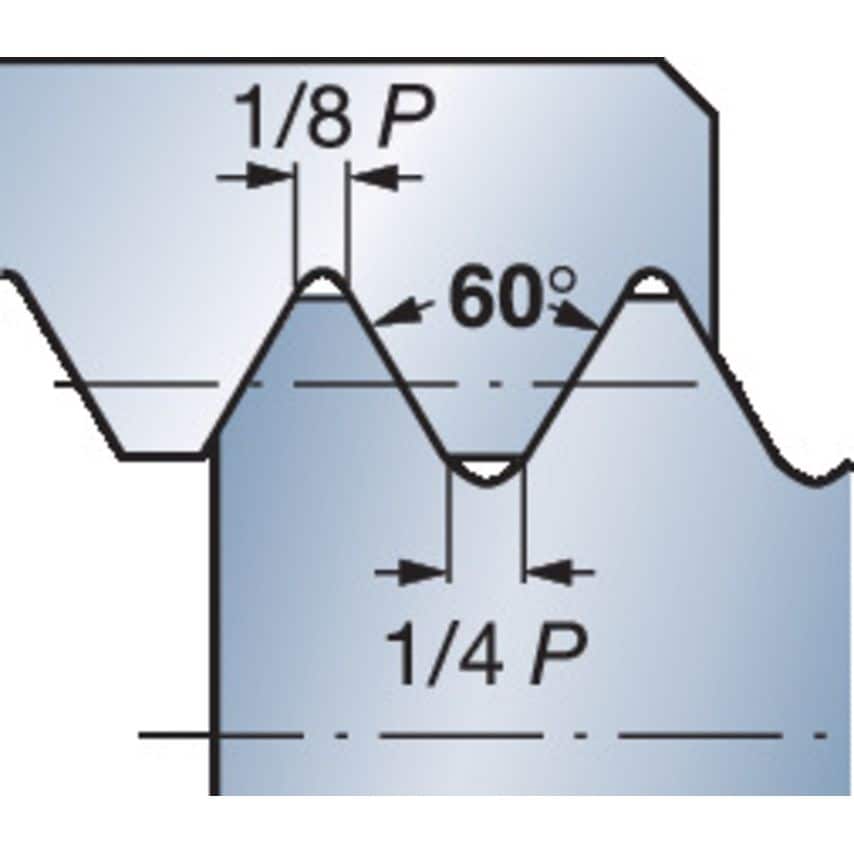

| Thread Form Type | M60 |
| Coating Process Type | PVD |
| Cutting Edge Count | 3 |
| Insert Mounting Style | Screw/Clamp |

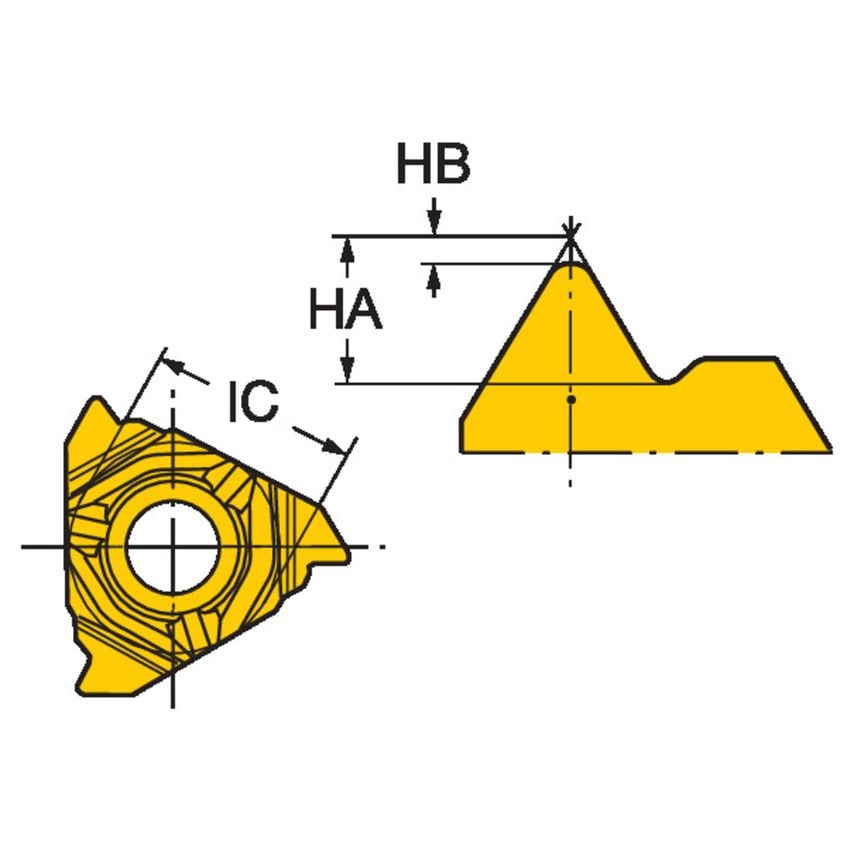

| Inscribed Circle Diameter | 12.7mm |
| Coating Type | TiAlN |
| Insert Style | Screw/Clamp |
| Hand Preference | Right |
| MFR Part No. | 5757873 |
| Unit Measured | Metric |
| Fixing Hole Diameter | 5.7mm |

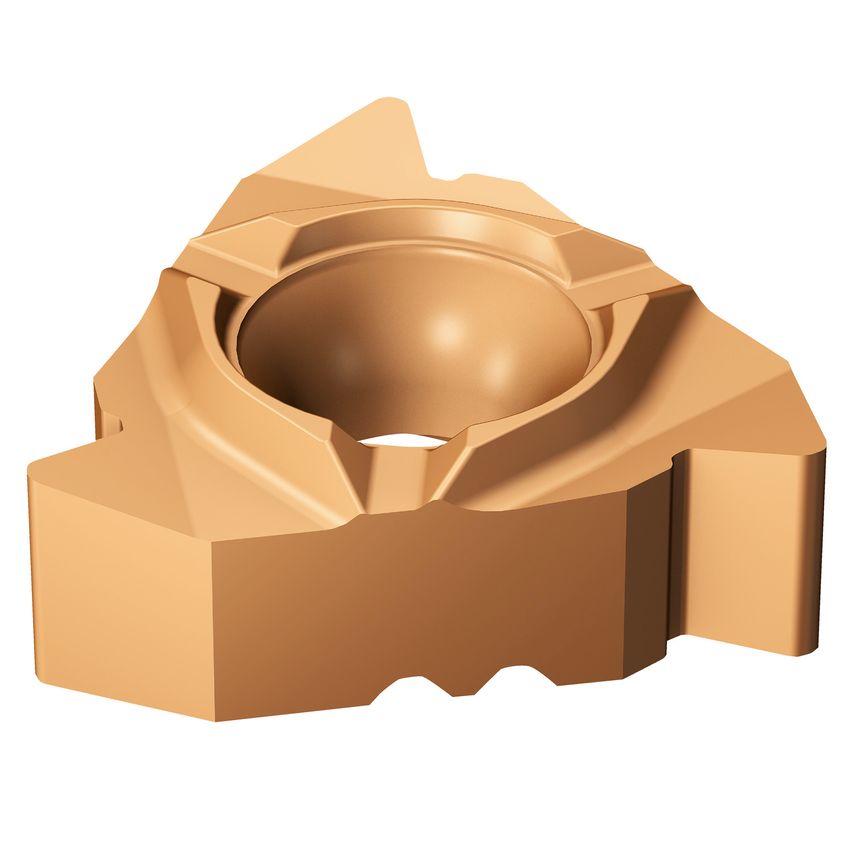

| Product Type | Insert for Thread Turning |
| Thread Type | External |
