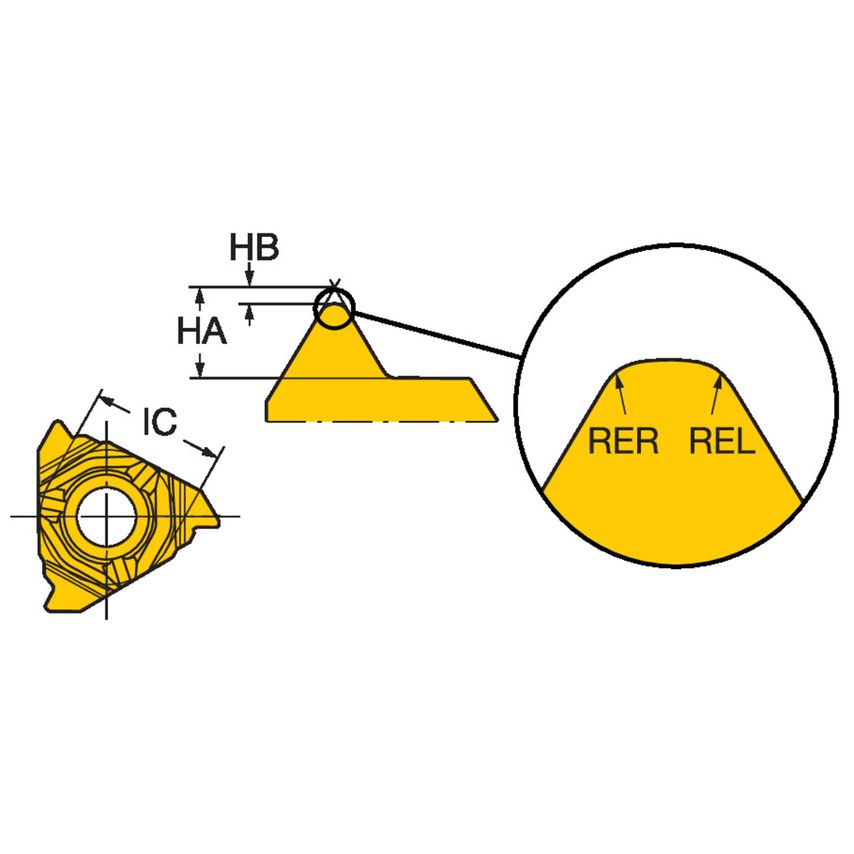

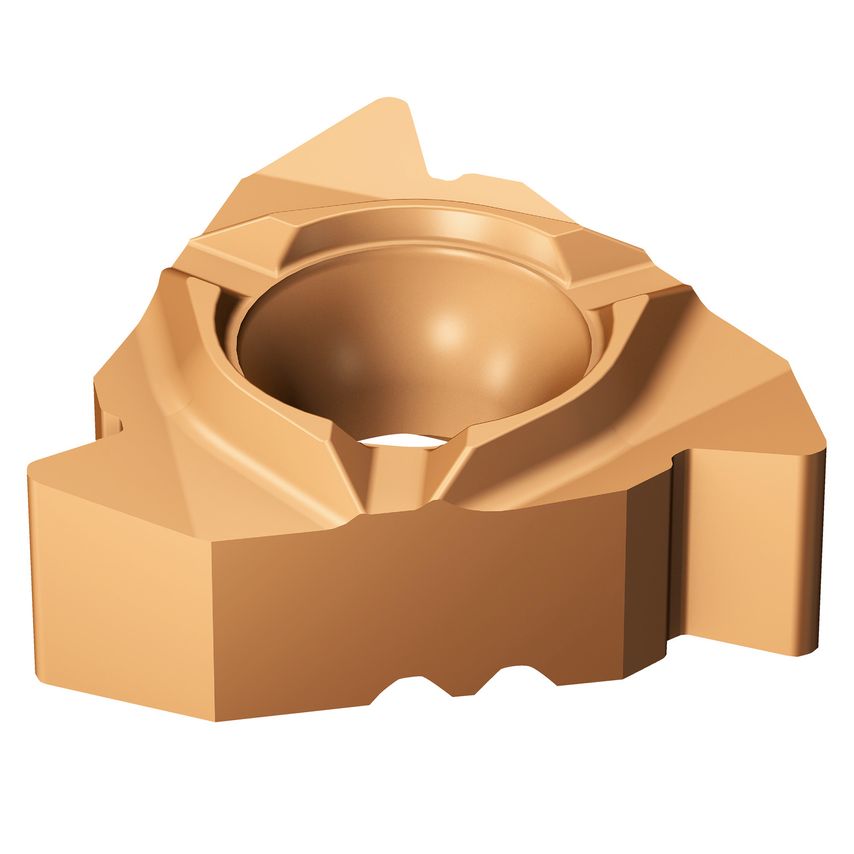

Product Range: CoroThread 266Highly rigid external and internal thread turningFeatures & Benefits- First choice for thread turning, iLock interface- Wide assortment of tools and thread profile inserts- Precision over and under coolant- Long tool life reduces costs- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.- Optimized geometries allow for reliable, predictable tool life in both through and blind hole applications.
| CoroPak | 9.2 |
| Through Hole Function Property | Yes |
| Unit Measured | Metric |
| Cutting Edge Count | 3 |
| Thread Type | Internal |
| Insert Mounting Style | Screw/Clamp |
| Maximum Threads Per Inch | 16 |
| MFR Part No. | 5757962 |
| Weight | 4.3g |
| Maximum Thread Pitch | 3mm |
| Minimum Threads Per Inch | 8 |
| Insert Style | Screw/Clamp |
| Coating Process Type | PVD |
| Inscribed Circle Diameter | 9.53mm |

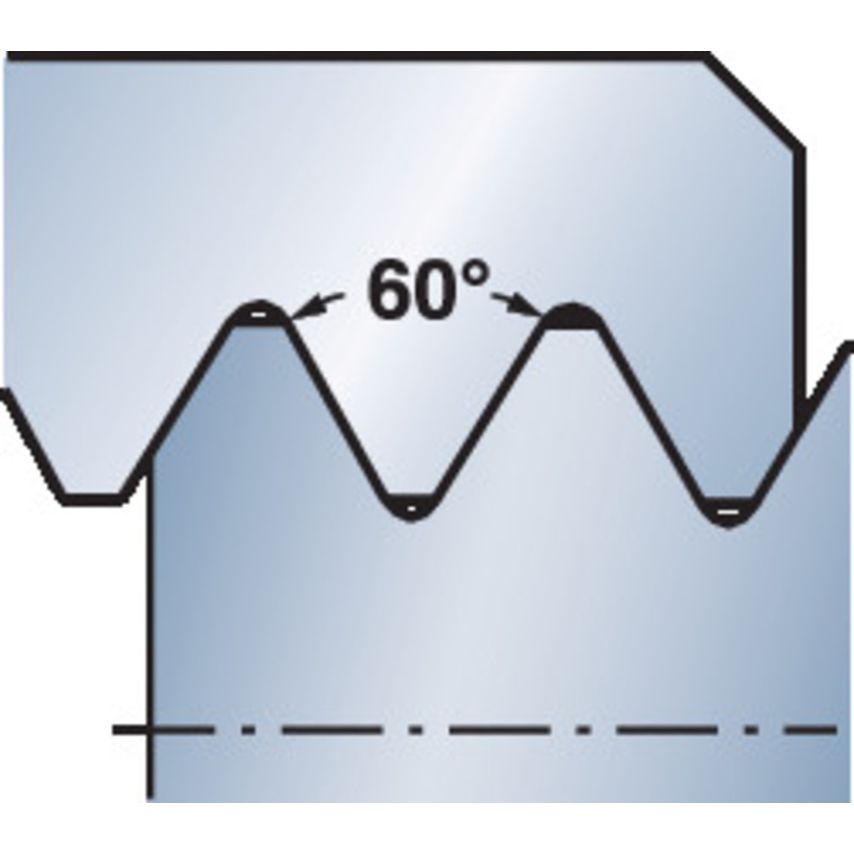

| Thread Form Type | VP60 |
| Fixing Hole Diameter | 4.4mm |
| Grade | 1125 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Inscribed Circle | 9.525mm |
| Hand Preference | Right |
| Coating Type | TiAlN |
| Minimum Thread Pitch | 1.5mm |
| Insert Thickness | 3.96875mm |
