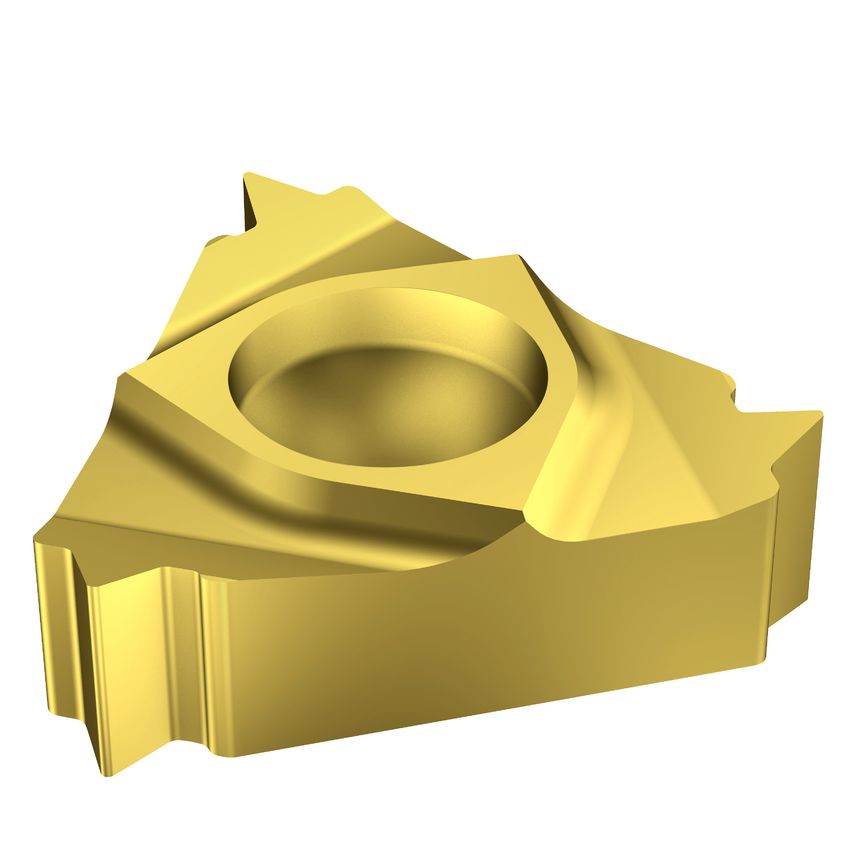

T-Max U-Lock insert for thread turning
| Weight | 1.8g |
| Insert Mounting Style | Screw/Clamp |
| Standards Met | ISO 965-1998 |
| Inscribed Circle Diameter | 6.35mm |
| Thread Tolerance Class | IT 6 |
| Inscribed Circle | 6.35mm |
| CoroPak | 91.3 |
| Thread Form Type | M60 |
| Cutting Edge Count | 3 |
| Thread Type | Internal |
| Grade | 1020 |
| Unit Measured | Metric |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Type | TiN |
| Thread Pitch | 1.5mm |
| Hand Preference | Left |
| Fixing Hole Diameter | 2.8mm |
| Insert Style | Screw/Clamp |
| MFR Part No. | 5734443 |
| Coating Process Type | PVD |
| Through Hole Function Property | Yes |
| Insert Thickness | 3.175mm |
