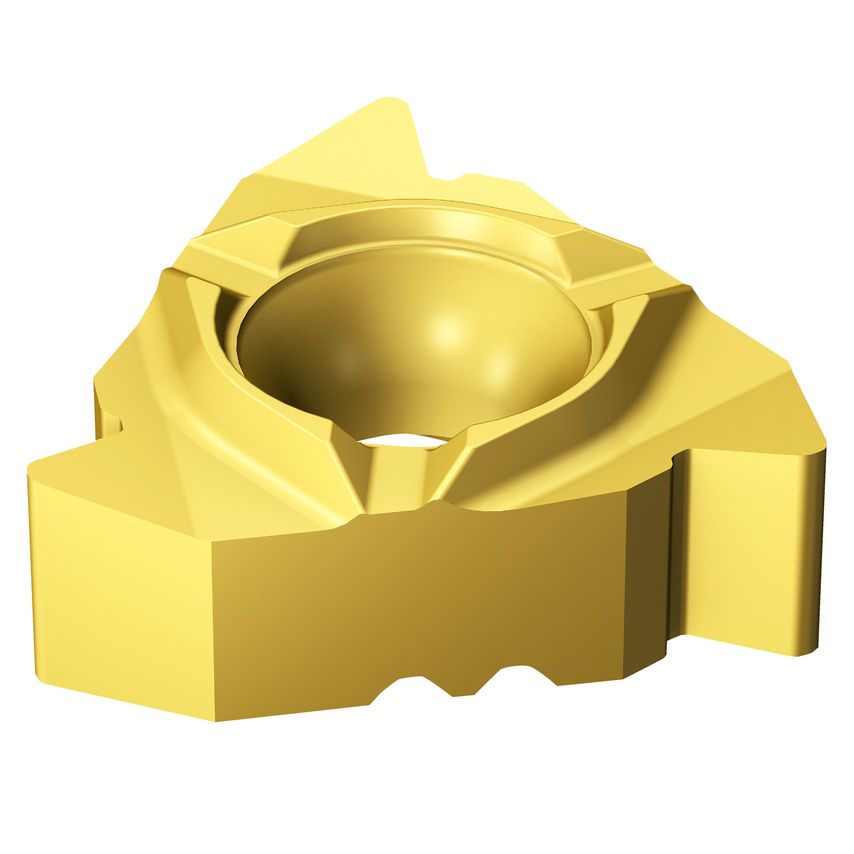

Product Range: CoroThread 266Highly rigid external and internal thread turningFeatures & Benefits- First choice for thread turning, iLock interface- Wide assortment of tools and thread profile inserts- Precision over and under coolant- Long tool life reduces costs- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.- Optimized geometries allow for reliable, predictable tool life in both through and blind hole applications.
| Insert Mounting Style | Screw/Clamp |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Insert Style | Screw/Clamp |
| MFR Part No. | 5758064 |
| Cutting Edge Count | 3 |
| Standards Met | API SPEC. 7 |
| Threads Per Inch | 4 |
| Hand Preference | Right |
| Insert Thickness | 5.5626mm |
| Inscribed Circle | 12.7mm |
| Coating Process Type | PVD |
| Thread Type | Internal |
| Inscribed Circle Diameter | 12.7mm |
| CoroPak | 8.1 |
| Coating Type | TiN |
| Through Hole Function Property | Yes |
| Thread Form Type | APF60V503 |
| Fixing Hole Diameter | 5.7mm |
| Grade | 1020 |
| Unit Measured | Metric |
