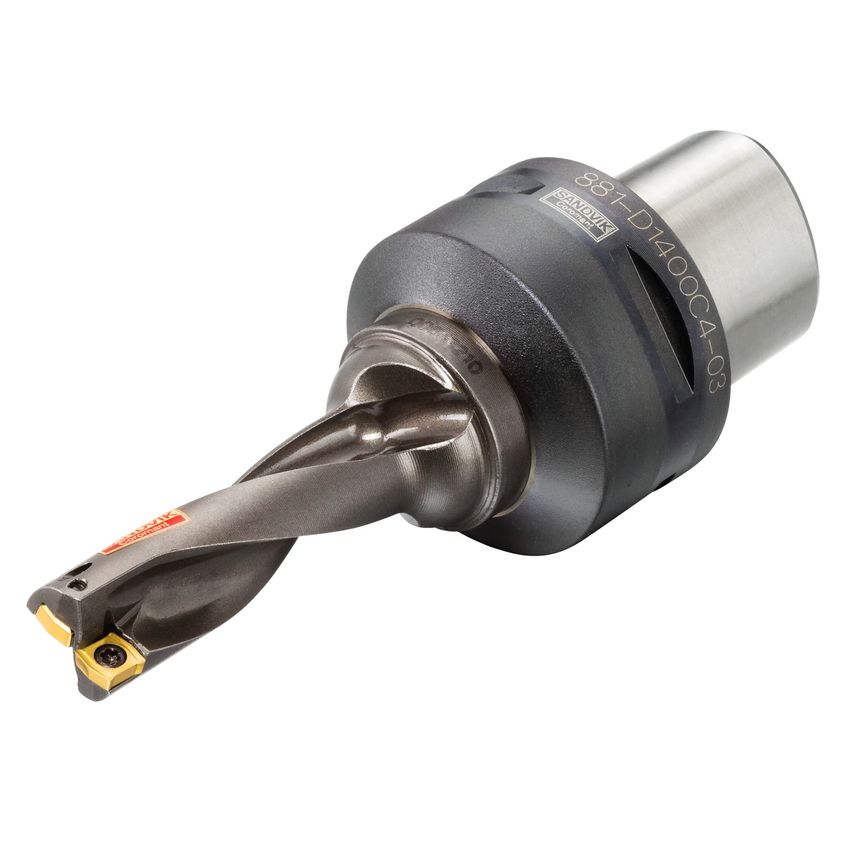

Product Range: CoroDrill 881Tool Type: Indexable drillsSecure holemaking for smaller diametersA problem solver for holes below 24 mm (0.945 inch) diameter. This complementary tool is optimized for unstable conditions, providing increased process security and stability for smaller hole diameters.Features & Benefits- Reliable hole-making for smaller diameters- Excellent choice for unstable conditions- Good choice for non-rotating applications- Easy to useApplication- Diameter range: 1423.50 mm (0.5620.937 inch)- Low to medium feed applications- Unstable conditions requiring strong, robust inserts- Non-rotating applications

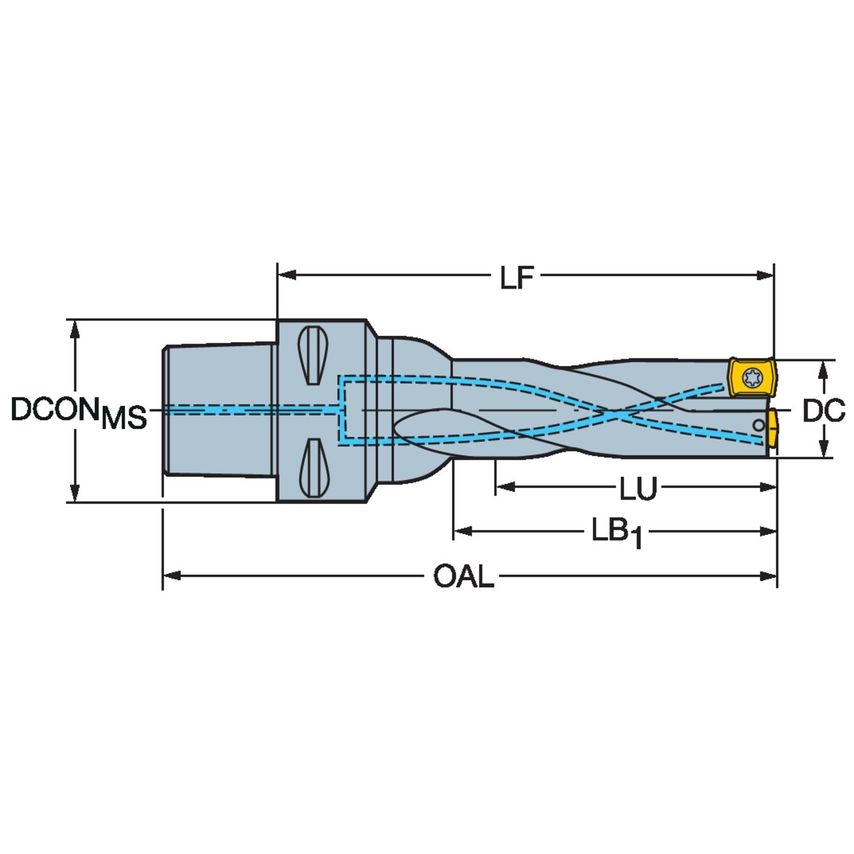

| Cutting Diameter | 14mm |
| MFR Part No. | 25962205 |
| Maximum Adjustment Limit | 1mm |
| Functional Diameter | 28mm |
| Usable Length Diameter Ratio | 3 |
| Usable Length | 42mm |
| Connection Diameter | 40mm |
| Tool Cutting Edge Angle | 78\u00b0 |
| CoroPak | 11.1 |
| Through Hole Function Property | Yes |
| Overall Length | 107mm |
| Weight | 402.1g |
| Rotational Speed Maximum | 30000 1/min |
| Functional Length | 82.7276mm |
| Unit Measured | Metric |
