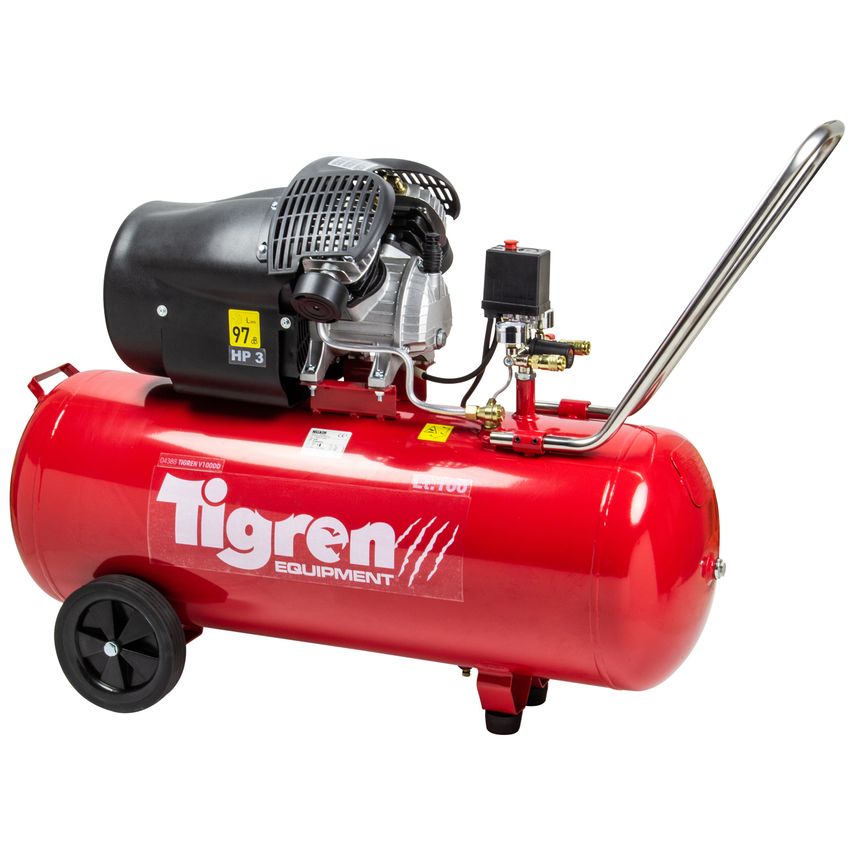

TIGREN V100DD 3HP Direct-Driven Compressor

The TIGREN V100DD 3HP Direct-Driven Compressor utilises a V-configuration pump unit which helps to keep the physical footprint of the compressor minimal, meaning a more compact and lightweight design ensuring easy and effortlessly portability. Not only is the TIGREN V100DD ready-for-use and ideal for the home user, small garages and workshops, it also caters for portable air requirements. As part of the curated TIGREN range, the V100DD is affordable and reliable, imparting powerful performance via unique and user-friendly features that offer the best, without spending big money. No-nonsense workhorse compressor Direct-driven model that is fully ready-for-use Wheel-mounted for easy manoeuvrability and positioning Anti-vibration rubber mounts for tank and pump protection 2-cylinder V-configuration splash oil-lubricated pump 2-pole brushless induction motor for longer life and performance Powerful twin cylinder compression for increased production Heavy-duty cast iron barrel for higher heat efficiency and life Force air cooling via motor fan ducting for added protection Ideal for the home user, small garages, and workshops, plus portable air applications

Maximum Pressure	116psi (8bar)
Height	850mm
Input Supply	230V (13A)
Power	3HP
MFR Part No.	04388
Piston Displacement	13CFM (368 litres/min)
Motor Power	3hp (2.2kW)
Type	Direct-Driven
Depth	1350mm
Width	350mm
Receiver Size	100L
