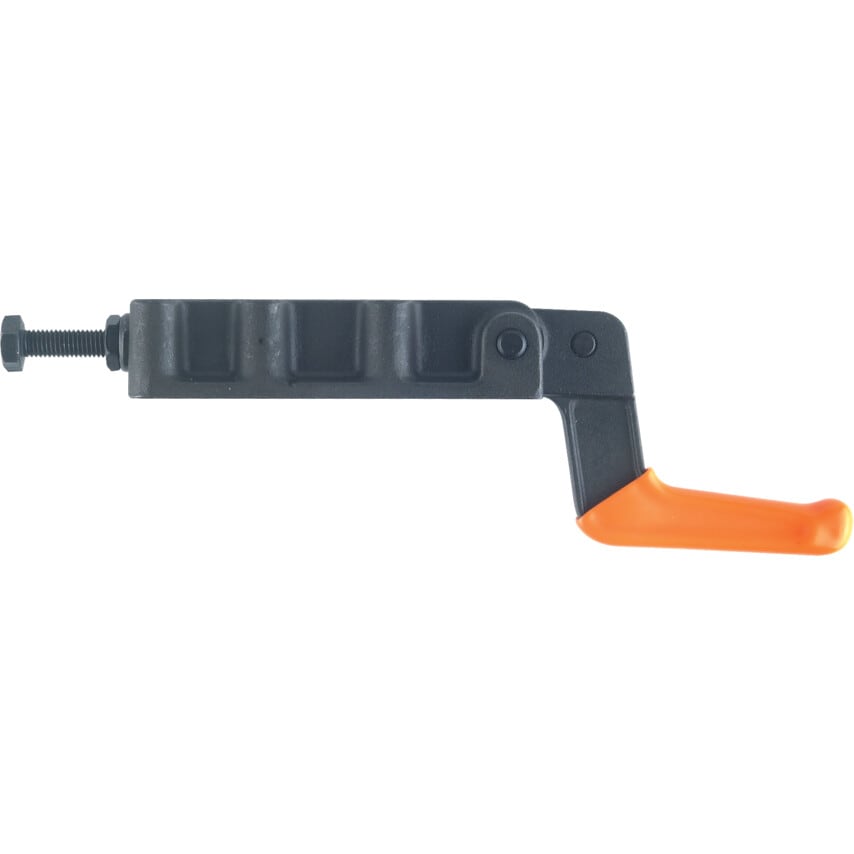

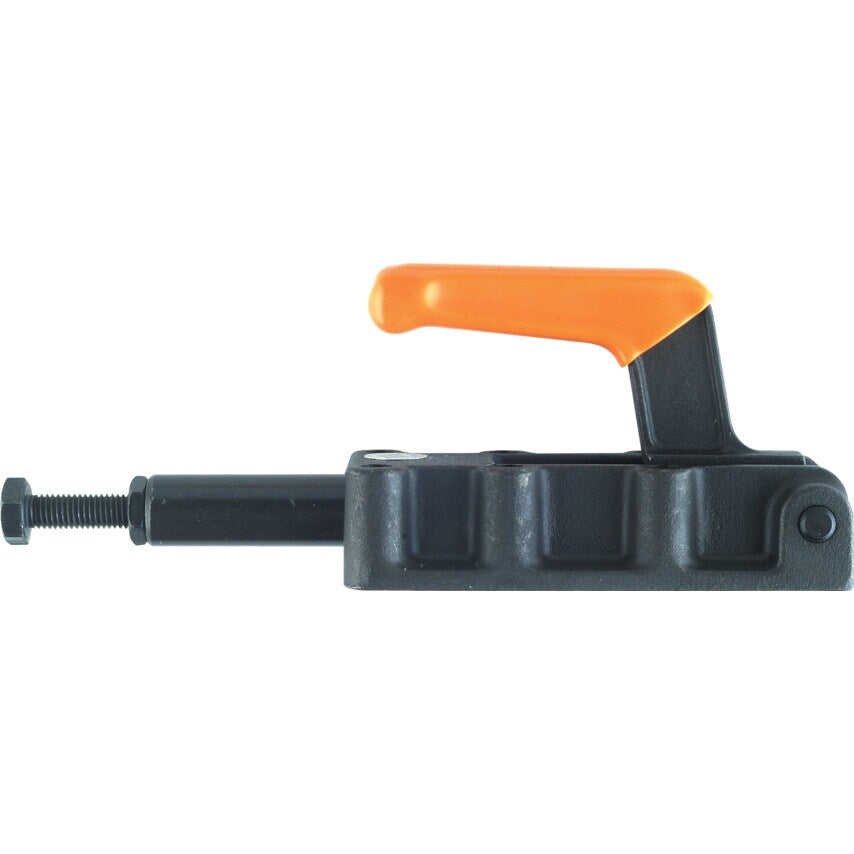

Features: These clamps are of exceptionally robust construction featuring cast and machined handles and bases. Clamps are designed with a low plunger height and with the mechanism guarded within the base to avoid finger traps.
Specification: The bases of all models are machined S.G. iron castings. The plungers are of steel, and their precision ground diameter runs in a close-tolerance hole in the base casting. Handle movement 185.
All axles are of hardened steel and run in either the S.G. iron of the handle, or in the close-toleranced holes of hardened parts. All models are supplied with a steel set screw.
| Width | 80mm |
| Type | Manual Clamp |
| Product Type | Toggle Clamps |
| Weight | 4.15kg |
| MFR Part No. | P2500L |
| Height | 280mm |
| Length | 297mm |
| Supplied With | MB1250 Setscrew & Nut |
| Nominal Holding Force | 2500daN |
| Handle Movement | 185\u00b0 |
| Style | Heavy-Duty Push-Pull Clamps Long |
| Clamp Type | Body Mounting |
