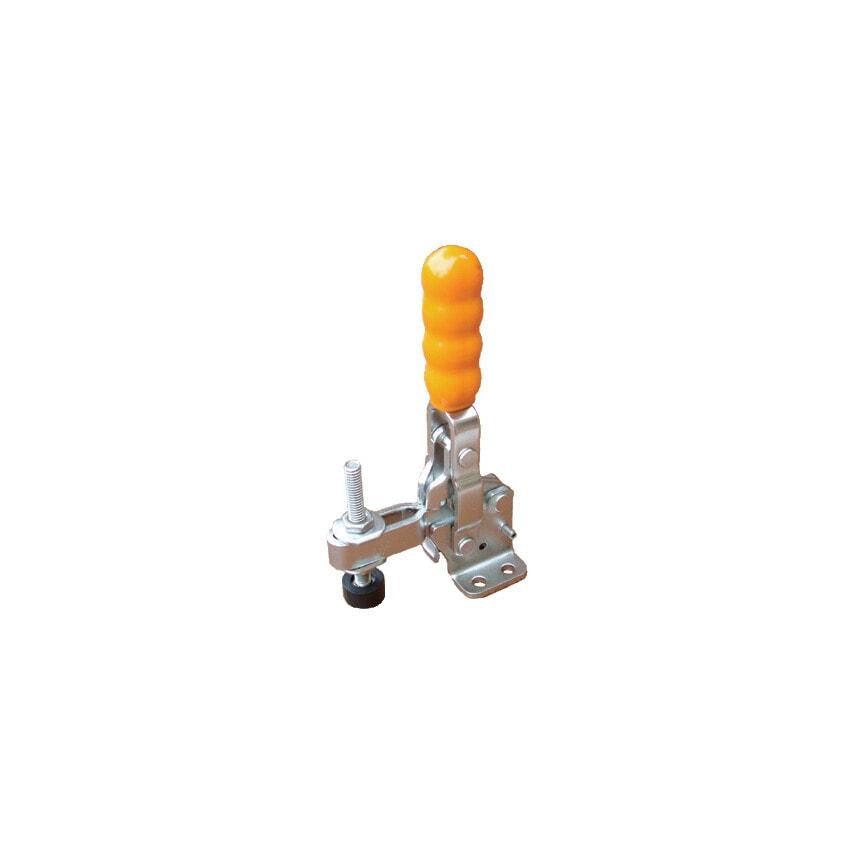

Features: Comfortable, cushioned PVC orange handle grips.
Specification: The main components are of zinc plated and passivated steel. Rivets are of stainless steel, which burnishes and work-hardens with use, the rivets of the larger clamps rotating in hardened bushes or directly in the close-toleranced holes of hardened parts.
| Bar Movement | 185\u00b0 |
| Weight | 0.1kg |
| Style | Flanged Base Adjustable Spindle |
| Width | 34mm |
| Handle Movement | 105\u00b0 |
| Clamp Type | Flanged |
| Product Type | Vertical Toggle Clamp |
| Type | Manual Clamp |
| Height | 103mm |
| Supplied With | FW05/10 Flanged Washers | MB0535 Setscrew & Nuts | NC/05 Neoprene Cover |
| Nominal Holding Force | 100daN |
| Length | 67mm |
| MFR Part No. | V100/2B |
