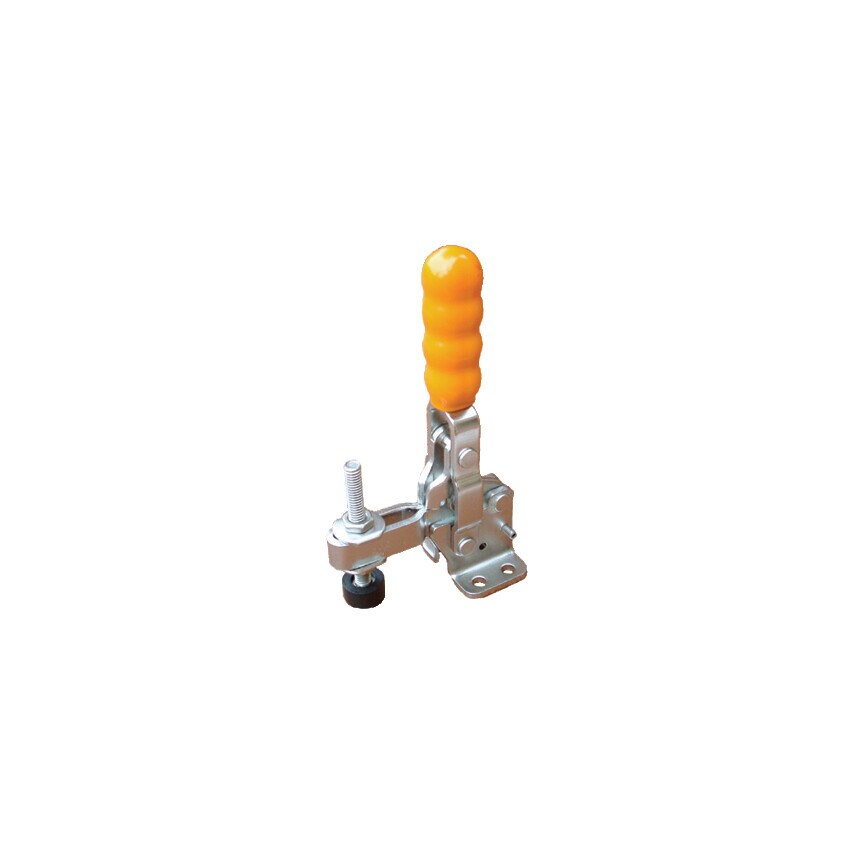

Features: Comfortable, cushioned PVC orange handle grips.
Specification: The main components are of zinc plated and passivated steel. Rivets are of stainless steel, which burnishes and work-hardens with use, the rivets of the larger clamps rotating in hardened bushes or directly in the close-toleranced holes of hardened parts.
| Type | Manual Clamp |
| Length | 110mm |
| Product Type | Vertical Toggle Clamp |
| Width | 45mm |
| Clamp Type | Flanged |
| Height | 175mm |
| Style | Flanged Base Adjustable Spindle |
| Bar Movement | 160\u00b0 |
| Nominal Holding Force | 250daN |
| MFR Part No. | V250/2B |
| Supplied With | FW08/15 Flanged Washers | MB0860 Setscrew & Nuts |
| Handle Movement | 100\u00b0 |
| Weight | 0.38kg |
