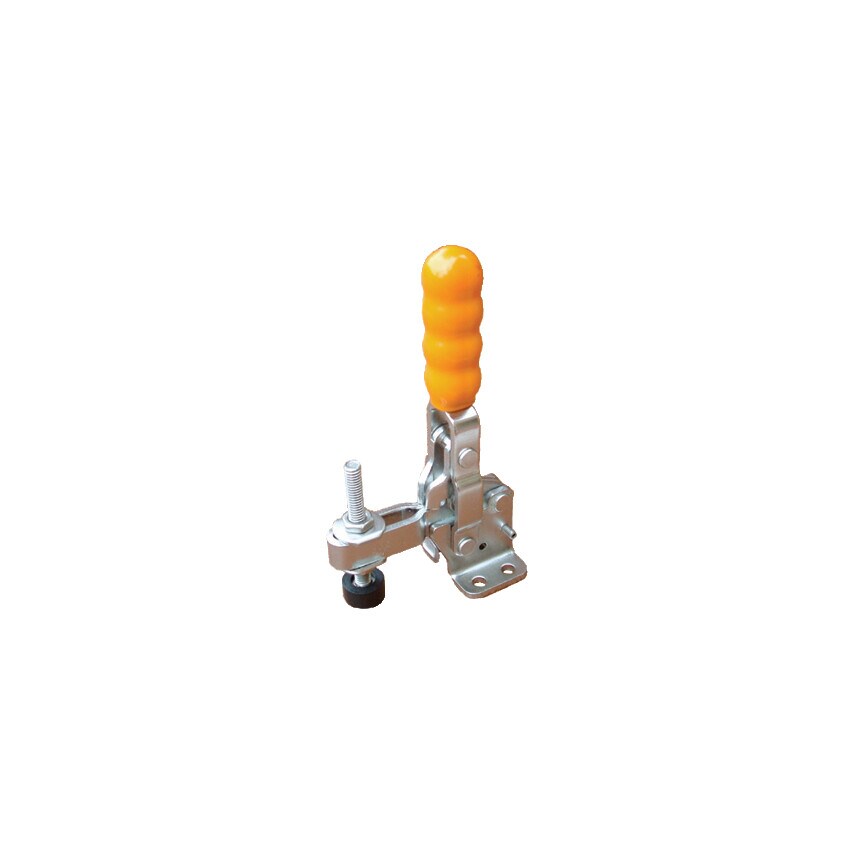

Features: Comfortable, cushioned PVC orange handle grips.
Specification: The main components are of zinc plated and passivated steel. Rivets are of stainless steel, which burnishes and work-hardens with use, the rivets of the larger clamps rotating in hardened bushes or directly in the close-toleranced holes of hardened parts.
| Height | 170mm |
| Type | Manual Clamp |
| MFR Part No. | V200/3B |
| Product Type | Toggle Clamps |
| Handle Movement | 95\u00b0 |
| Style | Front Mounted Adjustable Spindle |
| Weight | 0.25kg |
| Width | 42mm |
| Length | 79mm |
| Nominal Holding Force | 200daN |
| Supplied With | FW06/12 Flanged Washers | MB0650 Setscrew & Nuts |
| Clamp Type | Front Mounting |
| Bar Movement | 175\u00b0 |
