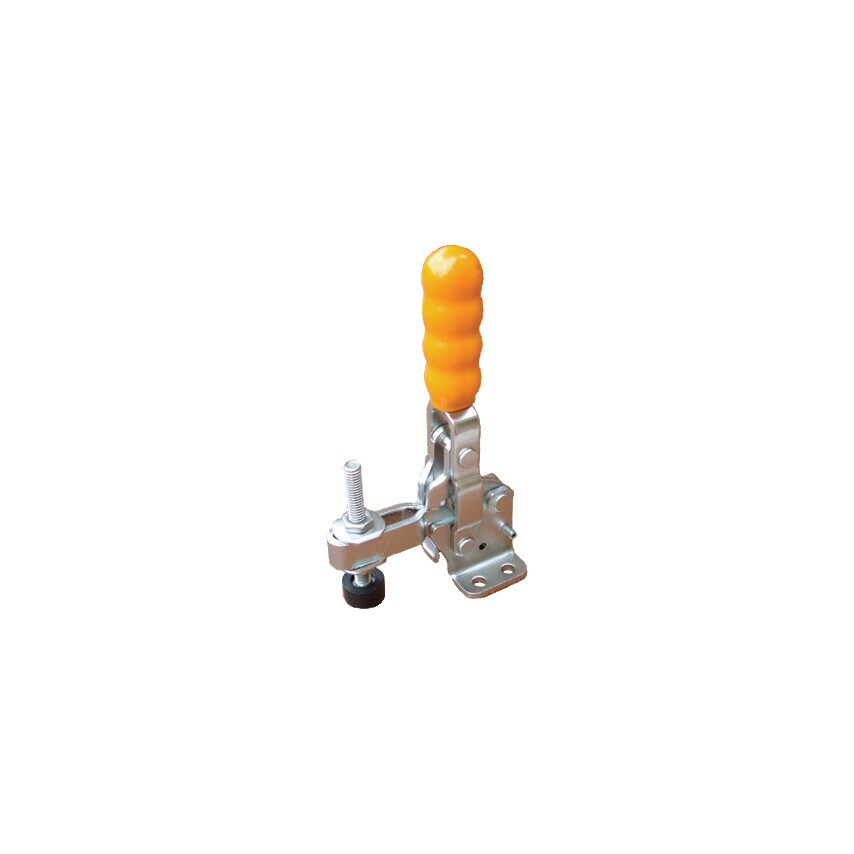

Features: Comfortable, cushioned PVC orange handle grips.
Specification: The main components are of zinc plated and passivated steel. Rivets are of stainless steel, which burnishes and work-hardens with use, the rivets of the larger clamps rotating in hardened bushes or directly in the close-toleranced holes of hardened parts.
| Length | 65mm |
| Width | 28mm |
| Weight | 0.11kg |
| Clamp Type | Front Mounting |
| Type | Manual Clamp |
| Product Type | Vertical Toggle Clamp |
| Nominal Holding Force | 100daN |
| Supplied With | MB0535 Setscrew & Nuts | NC/05 Neoprene Cover |
| MFR Part No. | V100/3C |
| Height | 122mm |
| Style | Front Mounted Fixed Spindle |
| Bar Movement | 190\u00b0 |
| Handle Movement | 100\u00b0 |
