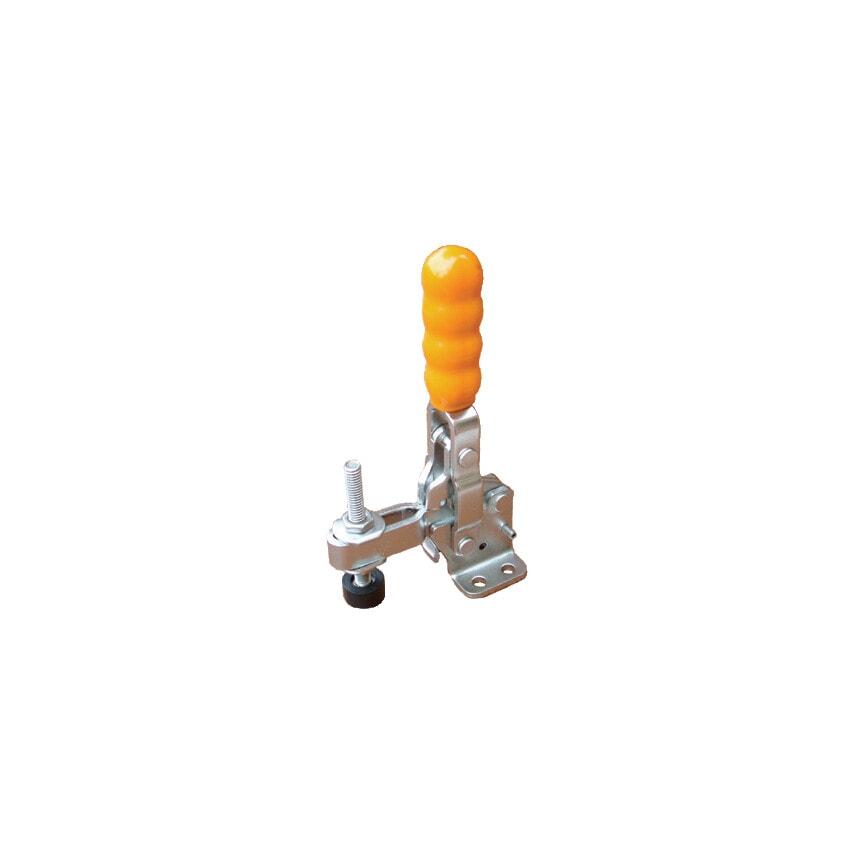

Features: Comfortable, cushioned PVC orange handle grips.
Specification: The main components are of zinc plated and passivated steel. Rivets are of stainless steel, which burnishes and work-hardens with use, the rivets of the larger clamps rotating in hardened bushes or directly in the close-toleranced holes of hardened parts.
| Width | 64mm |
| Handle Movement | 110\u00b0 |
| Clamp Type | Flanged |
| Length | 177mm |
| Style | Flanged Base Adjustable Spindle |
| Type | Manual Clamp |
| Bar Movement | 180\u00b0 |
| Height | 228mm |
| Product Type | Vertical Toggle Clamp |
| MFR Part No. | V450/2B |
| Nominal Holding Force | 450daN |
| Weight | 1.35kg |
| Supplied With | FW12/23 Flanged Washers | MB12100 Setscrew & Nuts |
