£2.18
Features: Comfortable, cushioned PVC orange handle grips.
Specification: The main components are of zinc plated and passivated steel. Rivets are of stainless steel, which burnishes and work-hardens with use, the rivets of the larger clamps rotating in hardened bushes or directly in the close-toleranced holes of hardened parts.
Length | 143mm |
Width | 51mm |

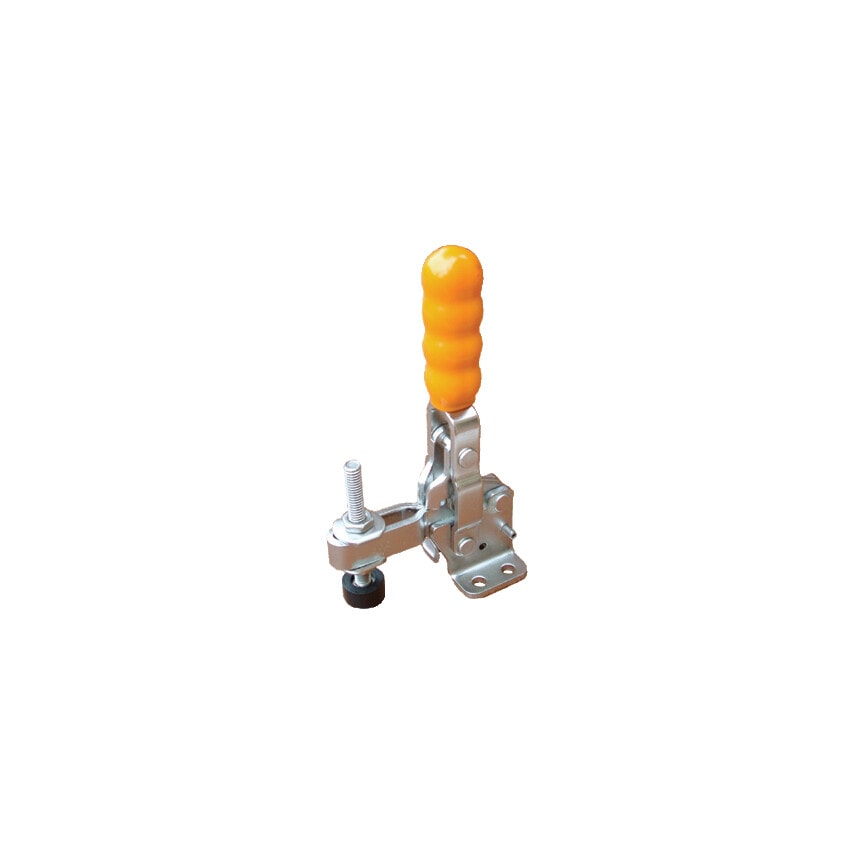

Product Type | Vertical Toggle Clamp |
Bar Movement | 160\u00b0 |
Weight | 0.5kg |
Type | Manual Clamp |
Handle Movement | 90\u00b0 |
Height | 235mm |
Nominal Holding Force | 300daN |
Clamp Type | Front Mounting |
MFR Part No. | V300/3B |
Supplied With | FW08/15 Flanged Washers | MB0860 Setscrew & Nuts |
Style | Front Mounted Adjustable Spindle |
