Features: Comfortable, cushioned PVC orange handle grips.
Specification: The main components are of zinc plated and passivated steel. Rivets are of stainless steel, which burnishes and work-hardens with use, the rivets of the larger clamps rotating in hardened bushes or directly in the close-toleranced holes of hardened parts.
| MFR Part No. | V150/2B |

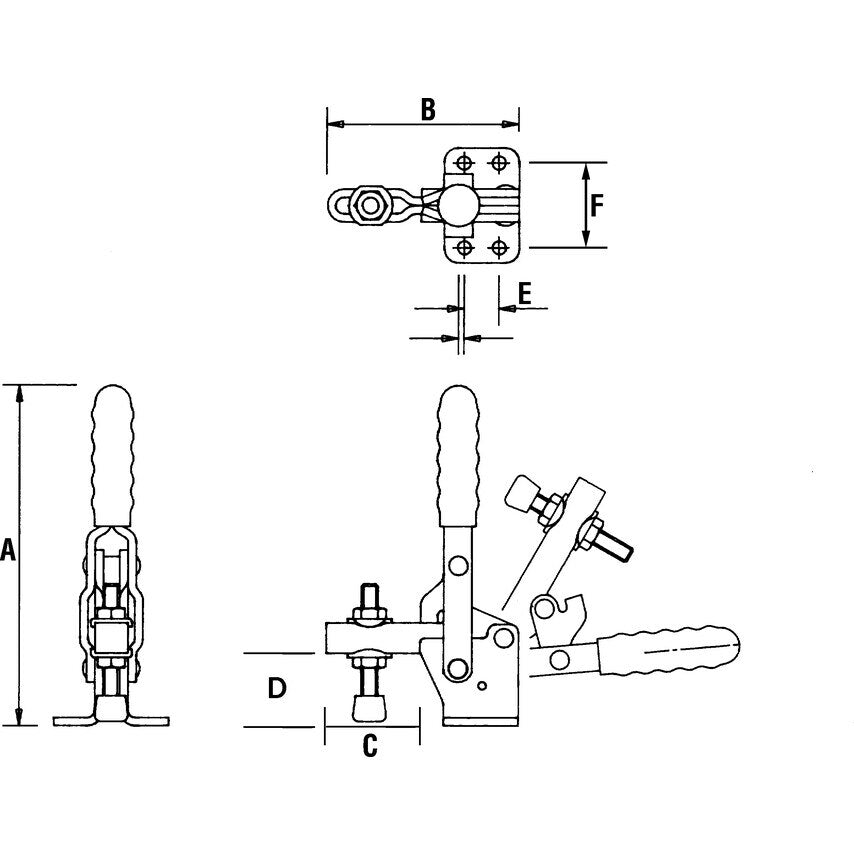

| Height | 125mm |
| Bar Movement | 185\u00b0 |
| Length | 70mm |
| Clamp Type | Flanged |
| Handle Movement | 110\u00b0 |
| Type | Manual Clamp |
| Nominal Holding Force | 150daN |

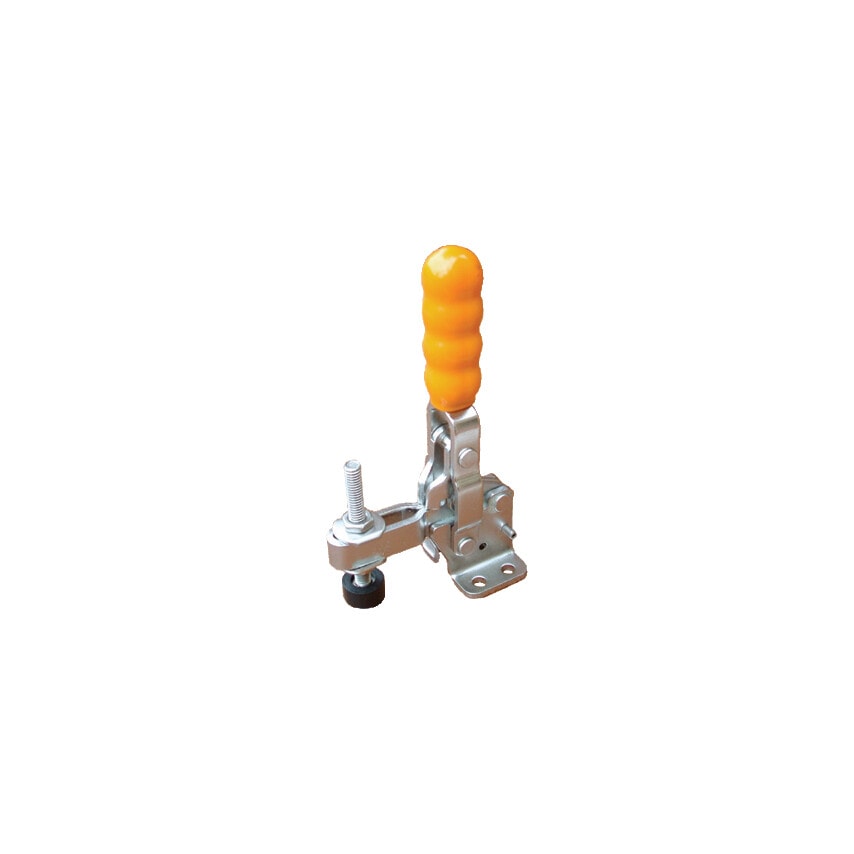

| Product Type | Vertical Toggle Clamp |
| Style | Flanged Base Adjustable Spindle |
| Weight | 0.15kg |
| Supplied With | FW06/12 Flanged Washers | MB0650 Setscrew & Nuts | NC/06 Neoprene Cover |
| Width | 38mm |
