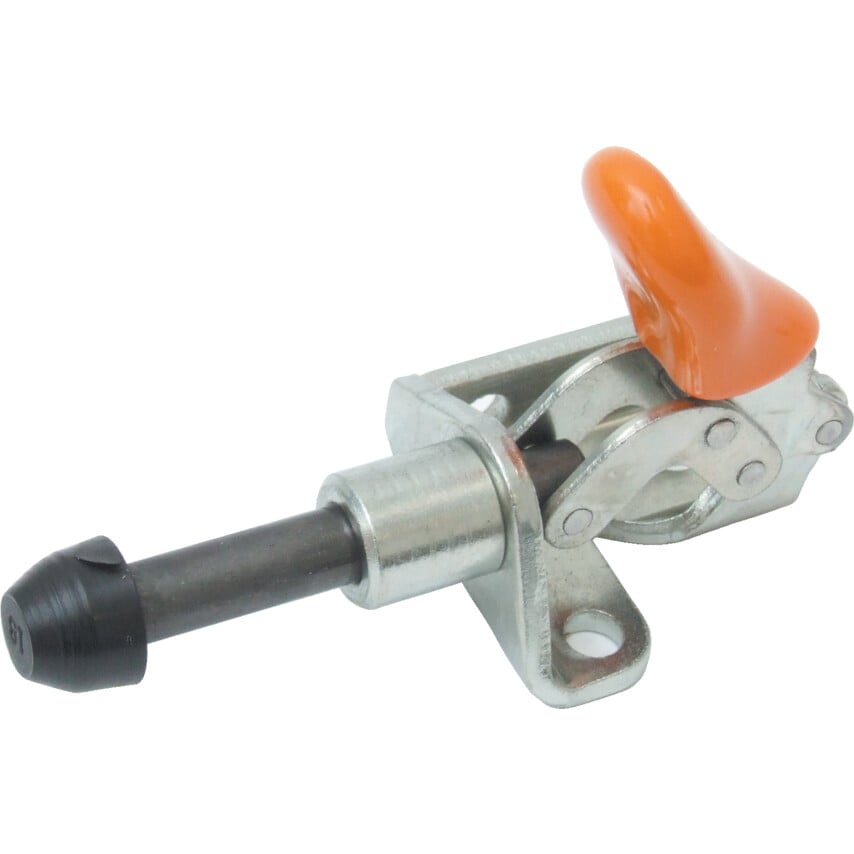

Features: Comfortable, cushioned PVC orange handle grips. With flanged base and fixed position spindle.
Specification: The main components are of zinc plated and passivated steel. Rivets are of stainless steel, which burnishes and work-hardens with use.
All clamps are supplied with mounting nut and lock nut.
| Width | 28mm |
| Weight | 0.05kg |
| Type | Manual Clamp |
| Clamp Type | Fixed Flange with Bottom or Side Mounting |
| Style | Steel Push-Pull Clamps |
| Height | 42mm |
| Supplied With | MB0420 Setscrew & Nut | NC/04 Neoprene Cover |
| Length | 67mm |
| Handle Movement | 190\u00b0 |
| Nominal Holding Force | 50daN |
| MFR Part No. | P50 |
