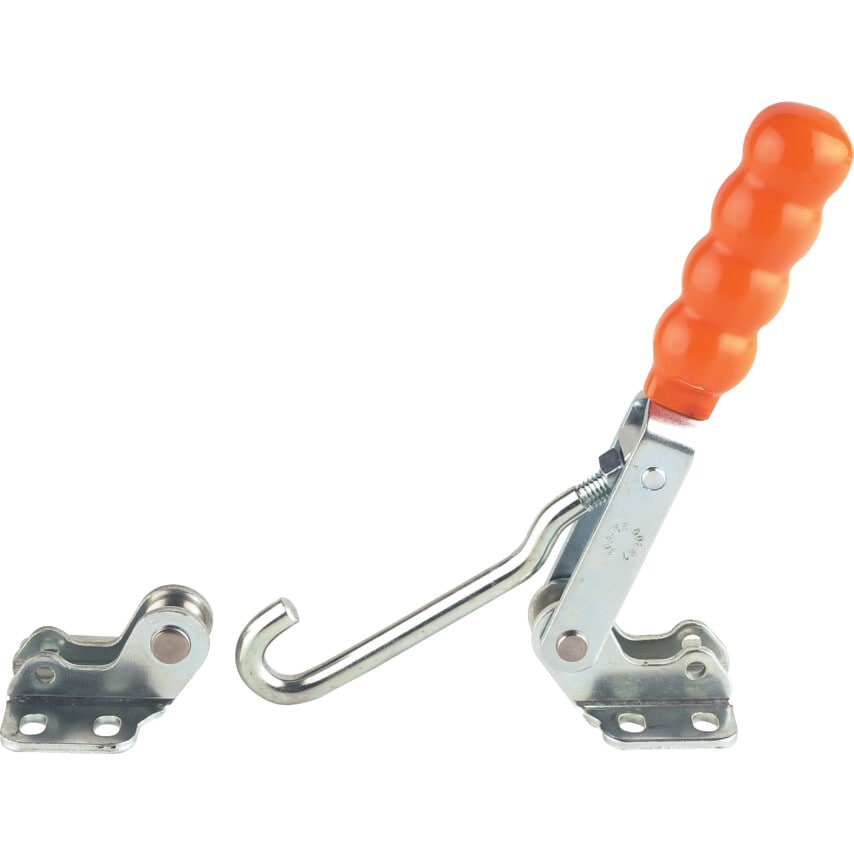

LH700 Hook Clamp

Features: The action of Hook clamps in pulling two parts together makes them suitable for applications such as closing and holding closed doors, lids, moulds, etc. A benefit of hook clamps is that while the clamp and the pin, or latch bracket it engages, must be in alignment when viewed from the top, there is no such requirement when viewed from the side - the clamp will lock securely over centre regardless of the angle of the hook. The hook may be engaged either directly to a bolt or pin on one of the parts to be pulled together, or to the latch bracket provided. All hook clamps are fitted with a comfortable, cushioned orange handle grip. Specification: Components are of zinc plated and passivated steel, the hooks being high tensile alloy steel.

Handle Movement	155\u00b0
Weight	1kg
Width	78mm
Height	49mm
Nominal Holding Force	700daN
Supplied With	Latch Bracket
Length	310mm
Type	Manual Clamp
Clamp Type	Flanged
Style	Hook Clamps
Product Type	Hook Clamp
MFR Part No.	LH700
