Proto save
£1.09

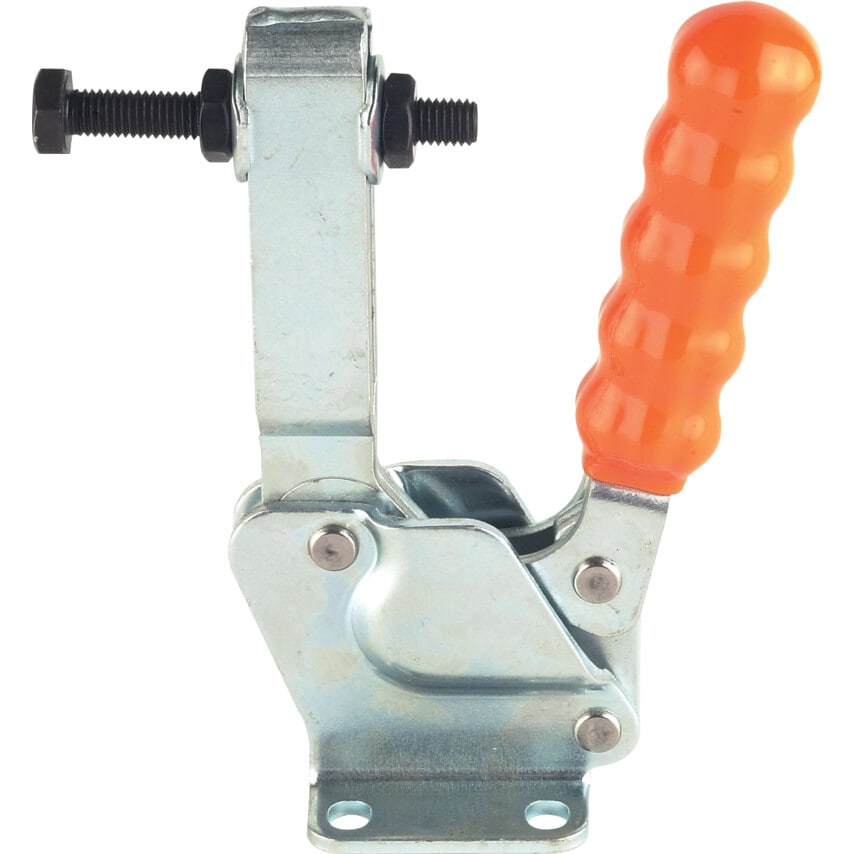

Features: Comfortable, cushioned PVC orange handle grips.
Specification: The main components are of zinc plated and passivated steel. Rivets are of stainless steel, which burnishes and work-hardens with use, the rivets of the larger clamps rotating in hardened bushes or directly in the close-toleranced holes of hardened parts.
Model H700 features a heavy duty cast steel base with centre hole for optional 'Tee' bolt mounting.
Height | 67mm |
Style | Flanged Base Adjustable Arm |
Clamp Type | Flanged |
MFR Part No. | H250/2B |
Nominal Holding Force | 250daN |
Product Type | Horizontal Toggle Clamp |
Supplied With | FW08/15 Flanged Washers | MB0860 Setscrew & Nuts |
Type | Manual Clamp |
Width | 46mm |
Length | 224mm |
Weight | 0.5kg |
Handle Movement | 80\u00b0 |
