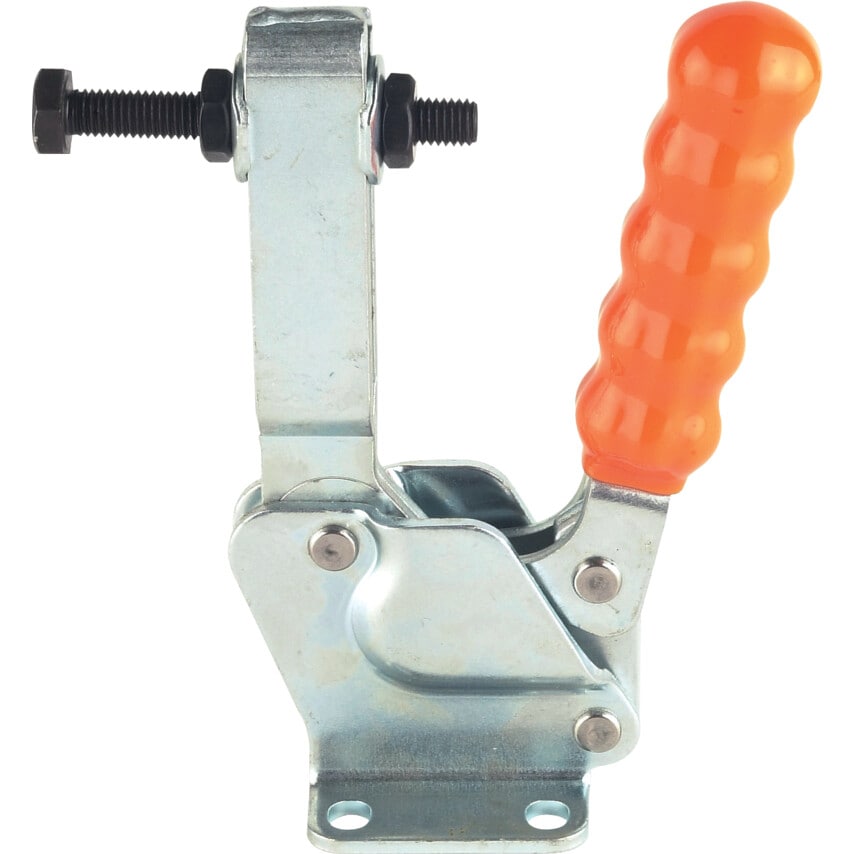

Features: Comfortable, cushioned PVC orange handle grips.
Specification: The main components are of zinc plated and passivated steel. Rivets are of stainless steel, which burnishes and work-hardens with use, the rivets of the larger clamps rotating in hardened bushes or directly in the close-toleranced holes of hardened parts.
Model H700 features a heavy duty cast steel base with centre hole for optional 'Tee' bolt mounting.
| Handle Movement | 90\u00b0 |
| Length | 140mm |
| Width | 38mm |
| Clamp Type | Flanged |
| Product Type | Horizontal Toggle Clamp |
| MFR Part No. | H200/2B |
| Weight | 0.17kg |
| Supplied With | Flanged Washers | Nuts | Standard Spindle |
| Style | Flanged Base Adjustable Arm |
| Nominal Holding Force | 200daN |
| Height | 40mm |
| Type | Manual Clamp |
