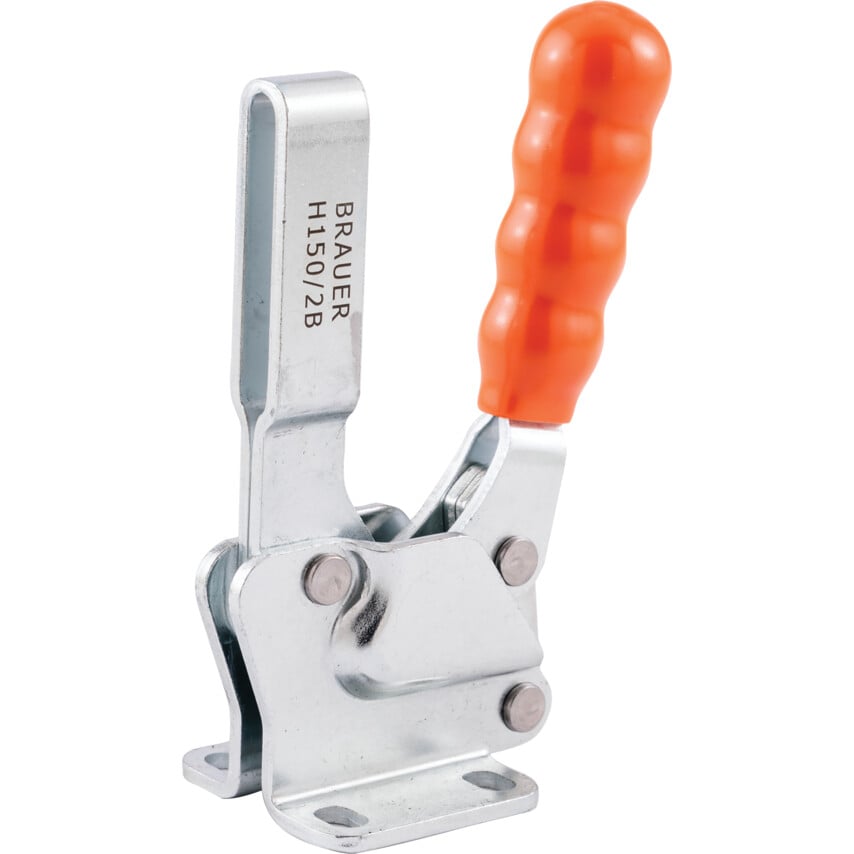

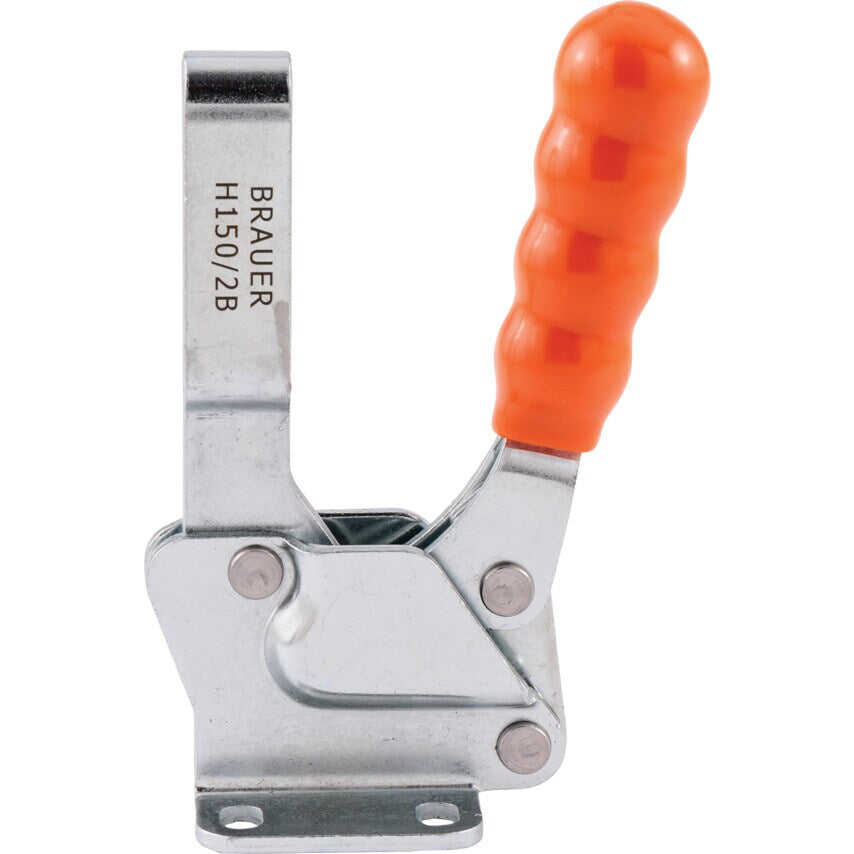

Features: Comfortable, cushioned PVC orange handle grips.
Specification: The main components are of zinc plated and passivated steel. Rivets are of stainless steel, which burnishes and work-hardens with use, the rivets of the larger clamps rotating in hardened bushes or directly in the close-toleranced holes of hardened parts.
Model H700 features a heavy duty cast steel base with centre hole for optional 'Tee' bolt mounting.
| Nominal Holding Force | 150daN |
| Handle Movement | 80\u00b0 |
| Length | 170mm |
| Weight | 0.25kg |
| Width | 40mm |
| MFR Part No. | H150/2B |
| Supplied With | FW06/12 Flanged Washers | MB0650 Setscrew & Nuts | NC/06 Neoprene Cover |
| Style | Flanged Base Adjustable Arm |
| Product Type | Horizontal Toggle Clamp |
| Height | 53mm |
| Clamp Type | Flanged |
| Type | Manual Clamp |
