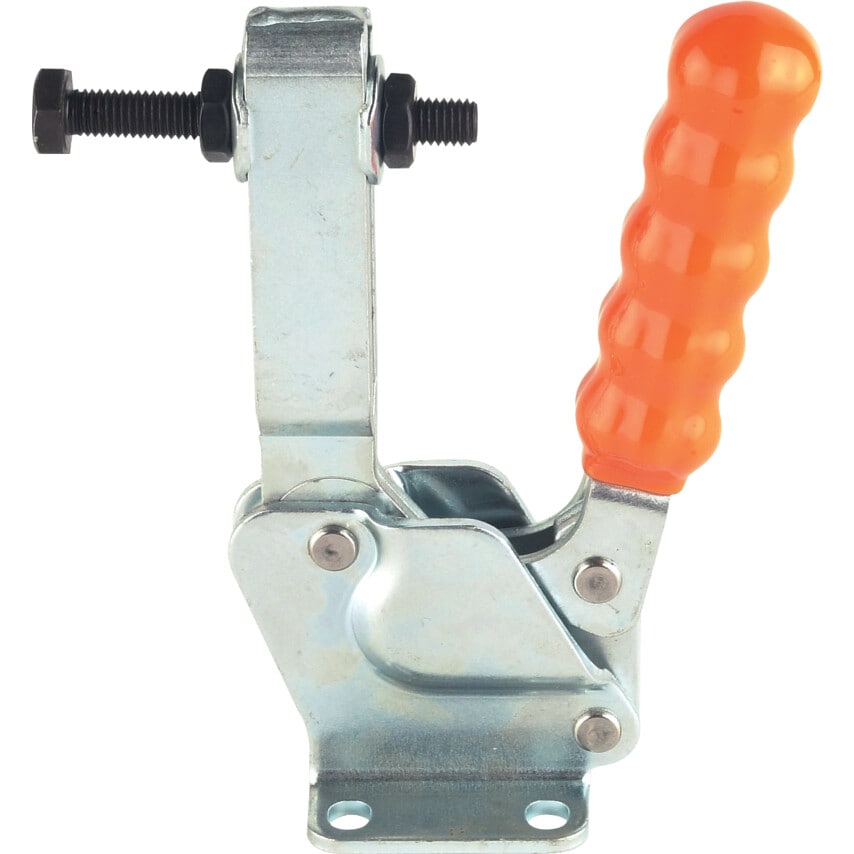

Features: Comfortable, cushioned PVC orange handle grips.
Specification: The main components are of zinc plated and passivated steel. Rivets are of stainless steel, which burnishes and work-hardens with use, the rivets of the larger clamps rotating in hardened bushes or directly in the close-toleranced holes of hardened parts.
Model H700 features a heavy duty cast steel base with centre hole for optional 'Tee' bolt mounting.
| Clamp Type | Flanged |
| Height | 36mm |
| Handle Movement | 75\u00b0 |
| Style | Flanged Base Adjustable Arm |
| Product Type | Toggle Clamps |
| Nominal Holding Force | 75daN |
| MFR Part No. | H75/2B |
| Width | 27mm |
| Length | 116mm |
| Type | Manual Clamp |
| Supplied With | FW05/10 Flanged Washers | MB0535 Setscrew & Nuts | NC/05 Neoprene Cover |
| Weight | 0.1kg |
