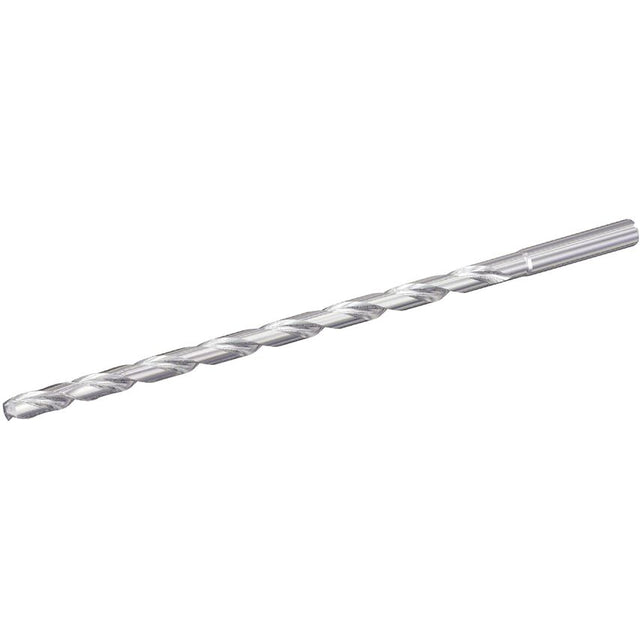

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Shank Length | 32.0000mm |
| Adapter / Shank / Bore Diameter | 4.0000mm |
| Flute Construction | Helical Flute |
| Helix Angle | 29.809 |
| Flute Length | 89mm | 89.0000mm |
| Adapter Style | Straight-Cylindrical |
| Drill Diameter Tolerance | -0.012000 to 0.000000mm |
| Adapter Type | Cylindrical |
| Primary Material | Steel |
| Coolant Supplied | Yes |
| Unit Measured | Metric |
| Material | Carbide |
| MFR Part No. | 6351290 |
| Functional Length | 124.3300mm |
| Helix Type | Right Hand Helix/Flute |
| Number of Flutes | 2 |
| Overall Length | 125mm | 125.0000mm |
| Drill Depth | 79mm | 79.0000mm |
| Assembly Length | 110.83mm |
| Drill Diameter | 3.9700mm |
| Coolant Diameter | 0.4200mm (0.0882in) |
| Drill Point | 0.67mm |
| Finish/Coating | Uncoated |
| Hand Preference | Right |
