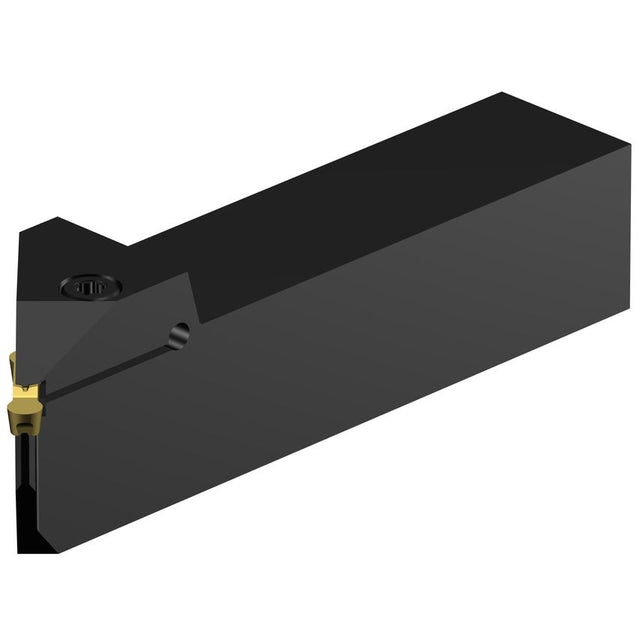

Product Range: CoroCut 1-2Tool Type: Parting and GroovingVersatile parting and grooving. Cost efficiency with two edges. Secure and efficient machining.With more than 700 standard inserts, CoroCut 1-2 covers all parting and grooving applications in most materials, from standardized grooves to parting off and profiling in heat resistant super alloys.Features & Benefits- Versatile parting and grooving- Geometries and grades for all application areas- Precision over and under coolantApplicationParting, external grooving, face grooving, internal grooving, profiling and hard part turningRoughing to finishingIn parting off and external grooving CoroCut 1-2 is a cost-efficient solution to depths where the 2-edged inserts can be used.
| Hand Preference | Right |
| CoroPak | 68 |
| Damping Property | No |
| Machine Side Body Angle | 0\u00b0 |
| Unit Measured | Imperial |
| Maximum Ramping Angle | 45\u00b0 |
| Usable Length | 5mm |
| Coolant Entry Style | Without Coolant |
| MFR Part No. | 5741359 |
| Functional Length | 170mm |
| Maximum Overhang | 48.3mm |
| Body Material | Steel |
| Weight | 1.1kg |
| Shank Width | 31.75mm |
| Through Hole Function Property | Yes |
| Coolant Exit Style | 0 |
| Workpiece Side Body Angle | 45\u00b0 |
