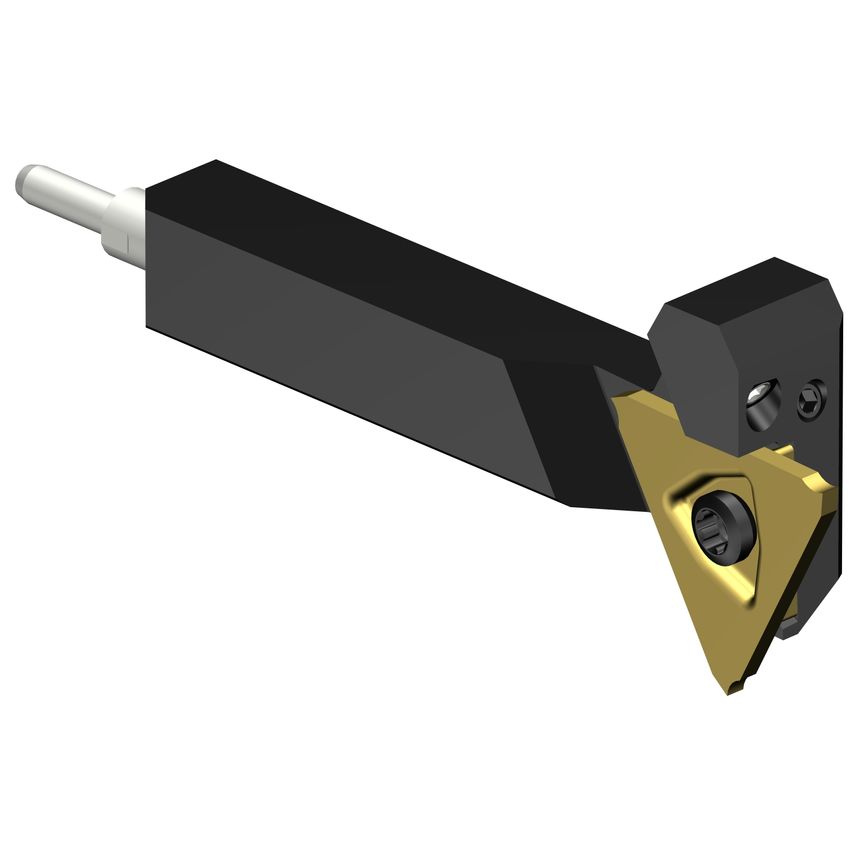

Product Range: CoroCut 3CoroCut 3 is a complete solution for narrow precision grooving and circlip grooving. It is your first choice for cost efficient parting-off in mass production you can save kilometers of material by reducing the insert width with CoroCut 3.Features & Benefits- Cost-efficient shallow parting and grooving- Precision grooving down to the smallest widths- Close tolerancesApplication- Geometries and grades for ISO P, M, K, and S materials- Parting off diameters less than 12 mm (0.5 inch) or thin walled rings- First choice for parting off bearing rings
| Unit Measured | Imperial |
| Coolant Exit Style | 7 |
| Coolant Entry Style | 1 |
| Workpiece Side Body Angle | 0\u00b0 |
| CoroPak | 25 |
| MFR Part No. | 6010190 |
| Functional Length | 25.4mm |
| Shank Width | 9.525mm |
| Maximum Overhang | 20mm |
| Hand Preference | Left |
| Maximum Cutting Depth | 6.4mm |
| Through Hole Function Property | Yes |
