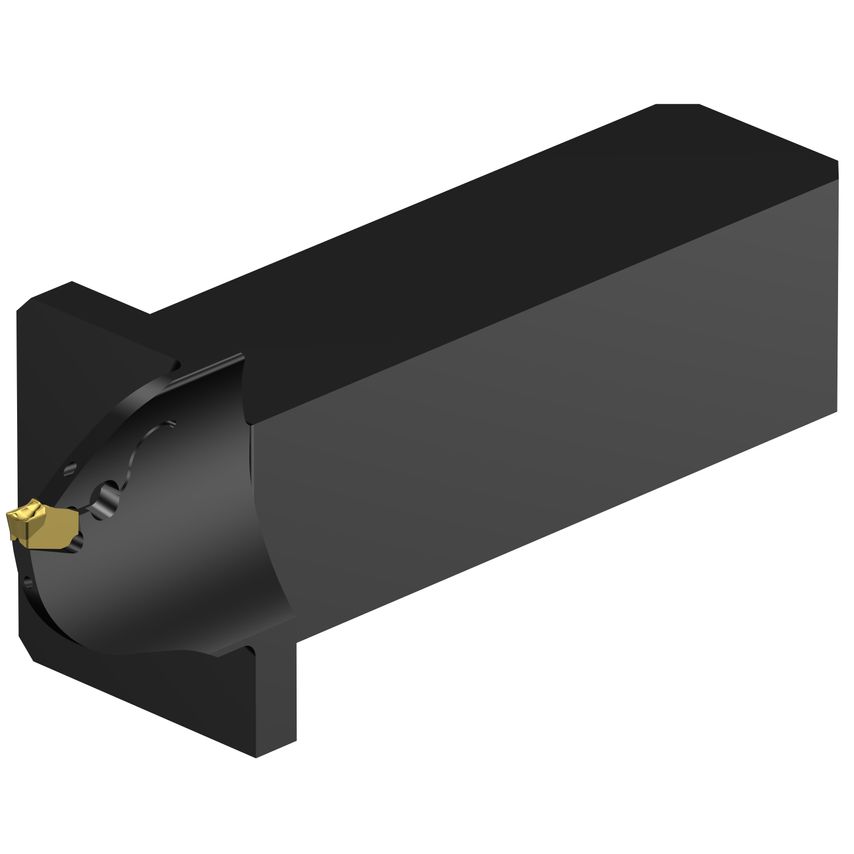

Secure face groovingInnovative blade designMore material in the weakest cross-section and decreased mass in the front part of the blade provide higher dynamic stiffness, effectively reducing vibration. The slit is optimized to provide correct clamping force. Insert design optimized for stable face groovingTilted insert with stabilizing rails at the top, bottom and back of the insert to minimize insert movement. Precision Coolant SupplyImproves chip evacuation and decreases the risk for chip jamming, critical factors for successful deep face grooving operations. Effective from low to high coolant pressures.Features & Benefits- First choice for deep face grooving for diameters over 30 mm- Reliable performance in tough conditions- Precision over and under coolant
| Hand Preference | Right |
| Functional Length | 113.6mm |
| Through Hole Function Property | Yes |
| Maximum Overhang | 29.6mm |
| Workpiece Side Body Angle | 0\u00b0 |
| Weight | 0.44kg |
| MFR Part No. | 7192371 |
| Maximum Cutting Depth | 20mm |
| CoroPak | 18.1 |
| Unit Measured | Metric |
| Shank Width | 25mm |
| Coolant Exit Style | 3 |
| Coolant Entry Style | 3 |
